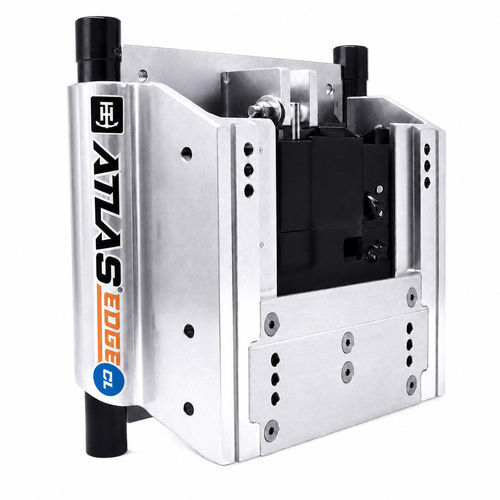

Boat engine bracket AHJE-6GX-DP

hydraulic jack platealuminum

Product overview
The ATLAS™ EDGE Standard hydraulic jack plate provides precise, fast outboard engine height control for serious boating applications. Combining a maintenance-free brushless motor with an integrated Smart Gauge, it offers selectable lift speeds, three Quick Set positions and a light-sensing display optimized for day/night visibility.

Summary

• Brushless motor for maintenance-free, responsive operation
• Integrated Smart Gauge with speed and height controls
• Rated for outboards up to 300 HP and 625 lbs. dry weight

Features

• Powerful brushless motor for smooth, rapid height adjustment
• Smart Gauge places speed and height controls at your fingertips
• Three selectable lift speeds: Slow, Medium and Fast
• Three Quick Set positions for one-touch return to saved engine heights
• Light-sensing display that adjusts for day/night readability
• Lift Control for simple manual adjustment and rapid movement
• Durable aluminum construction suited to marine environments
• Supports outboard engines up to 300 HP and 625 lbs. dry weight
• Manufactured in the U.S.A.

Additional description
ATLAS™ EDGE lets operators fine-tune engine trim for fuel efficiency, handling and performance, or make rapid changes as conditions evolve. Choose the lift speed that matches your operation, use Quick Set positions to return to known heights instantly, and use double-tap functionality for rapid travel when immediate adjustment is required. The integrated Smart Gauge centralizes key jack plate functions for intuitive control while on the water.

Technical specifications

• Product type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Standard
• Finish: Polished aluminum
• Available setbacks: 4", 6", 8", 10", 12" and 14"
• Maximum horsepower: 300 HP
• Maximum engine weight: 625 lbs. dry weight
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor type: Brushless
• Controls: Smart Gauge
• Lift speeds: Slow, Medium and Fast
• Saved height positions: Three
• Country of origin: Made in U.S.A.
