Boat engine bracket AHJE-10VHD-DP

hydraulic jack platealuminum

Overview

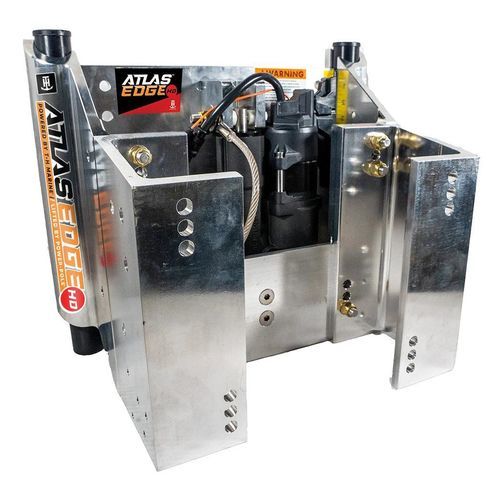

The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate brings the control and speed of the ATLAS EDGE platform to large outboard applications. Rated for engines up to 450 HP and 810 lb dry weight, it is engineered for demanding boating use where precise trim and fast, reliable vertical adjustment matter.

Key highlights

• Rated for engines up to 450 HP and 810 lb dry weight
• Brushless motor with maintenance-free operation
• Smart Gauge with selectable lift speeds and saved height presets

Features

• Heavy Duty construction designed for large, high-horsepower outboards
• Supports engines up to 450 HP and 810 lb dry weight
• Brushless motor for smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine maintenance
• Smart Gauge provides on-dash control, speed indicator and saved heights
• Three selectable lift speeds: Slow, Medium, Fast
• Three custom presets for quick access to saved engine heights
• Light sensor for automatic day/night display adjustment
• Double-tap controls enable rapid full-speed movement
• 5.75" hydraulic rise
• 8.25"–9.75" total rise
• Aluminum construction with polished finish
• Made in the U.S.A.
• Available in 4", 6", 8", 10", 12" and 14" setbacks

Lead time
Estimated lead time (business days): 7 to 14

Included / Not included

• Included controls: Smart Gauge
• Mounting bolts: Not included

Product description
Powered by T-H Marine™ and lifted by Power-Pole®, the ATLAS EDGE Heavy Duty jack plate combines a brushless motor with a sealed hydraulic unit to deliver smooth, ultra-fast height adjustment without routine motor or hydraulic maintenance. Adjust engine height to optimize performance, control and fuel efficiency, or change trim quickly as load and sea conditions vary. The integrated Smart Gauge lets the operator select slow, medium or fast lift speeds, stores three custom presets for saved heights, and automatically adjusts the display for day/night visibility. Rugged aluminum construction and a polished finish provide the durability and precision required for heavy-duty marine outboard applications.

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lb dry weight
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Country of Origin: Made in U.S.A.
• SKU (example variant shown): AHJE-10VHD-DP
