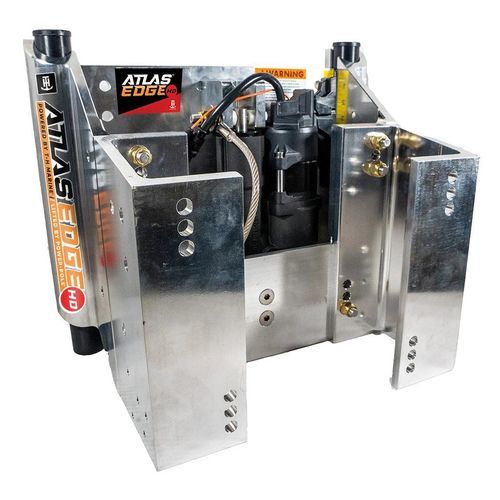

Boat engine bracket AHJE-4VHD-DP

hydraulic jack platealuminum

Product Overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate brings speed, intelligence, and precise control of the ATLAS EDGE platform to larger outboard applications. Rated for engines up to 450 HP and 810 lbs. dry weight, it is engineered for demanding boaters who require strength, durability, and reliable performance on the water. Powered by a brushless motor and a sealed hydraulic unit, the system delivers smooth, ultra-fast height adjustment with minimal routine maintenance. The integrated Smart Gauge provides selectable lift speeds, three custom presets, a speed indicator, and a light-sensitive display for day/night visibility.

Highlights

• Rated for engines up to 450 HP and 810 lbs. dry weight
• Brushless motor with maintenance-free operation
• Smart Gauge with speed control and saved heights
• Three selectable lift speeds: Slow, Medium, and Fast
• Three custom presets for saved engine heights
• Speed indicator displays the currently selected lift speed
• Light sensor automatically adjusts the display for day or night use
• Double-tap controls provide rapid movement at full speed

Features (from product page)

• Heavy Duty construction for large, high-horsepower outboards
• Brushless motor delivers smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine maintenance
• Smart Gauge provides convenient jack plate control
• Three selectable lift speeds: Slow, Medium, and Fast
• Three custom presets provide quick access to saved engine heights
• Speed indicator displays the active setting
• Light sensor automatically adjusts the display for day or night operation
• Double-tap controls for full-speed movement
• 5.75" of hydraulic rise
• 8.25"–9.75" of total rise
• Aluminum construction with a polished finish
• Made in the U.S.A.
• Available in 4", 6", 8", 10", 12", and 14" setbacks

Caractéristiques / Spécifications techniques

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lbs. (dry weight)
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Mounting Bolts: Not included
• Country of Origin: Made in U.S.A.
• SKU (page): AHJE-4VHD-DP
