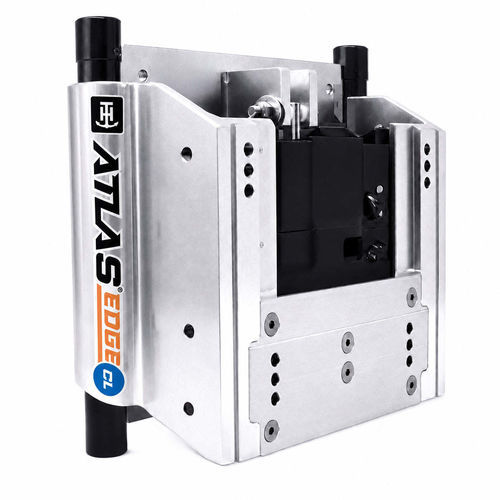

Boat engine bracket AHJE-4V-DP

adjustablehydraulic jack platealuminum

Product overview Introducing the ATLAS™ EDGE Standard Hydraulic Jack Plate from T-H Marine™ and Power-Pole®. Engineered for precise outboard height control, the ATLAS EDGE pairs a brushless motor with intelligent Smart Gauge controls to adapt quickly to changing water and load conditions. Lead time (business days): 7 to 14.

Product highlights

• Brushless motor for fast, maintenance-free operation
• Smart Gauge with speed and height controls and light-sensing display
• Rated for outboards up to 300 HP and 625 lbs. dry weight

Features

• Powerful brushless motor delivers smooth, responsive height adjustments
• Smart Gauge provides intuitive control of speed, height and saved positions
• Three selectable lift speeds: Slow, Medium and Fast
• Three Quick Set positions for rapid access to saved engine heights
• Light-sensing display automatically adjusts for day or night readability
• Lift Control enables manual adjustments and rapid movement via double-tap
• Heavy-duty aluminum construction suited to marine environments
• Supports outboard engines up to 300 HP and 625 lbs. dry weight
• Manufactured in the U.S.A.

Specifications / Technical details

• Product type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Standard
• Finish: Polished aluminum
• Available setbacks: 4", 6", 8", 10", 12" and 14"
• Maximum horsepower: 300 HP
• Maximum engine weight: 625 lbs. (dry)
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor type: Brushless
• Controls: Smart Gauge (speed and height controls; light-sensing display)
• Lift speeds: Slow, Medium and Fast
• Saved height positions: Three
• SKU: AHJE-4V-DP
• Country of origin: Made in U.S.A.
