Boat engine bracket AHJE-10V-B-DP

adjustablehydraulic jack platealuminum

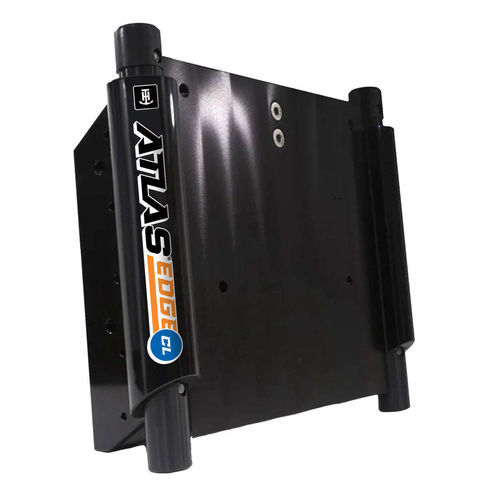

Overview The ATLAS™ EDGE Classic Hydraulic Jack Plate by T-H Marine™ and Power-Pole® provides precise outboard height control for performance and handling. Compact, brushless-driven and finished in black anodize, the ATLAS EDGE delivers rapid, repeatable adjustments to adapt to varying water and load conditions.

Highlights

• Fast, precise hydraulic adjustment with durable black anodized finish
• Brushless motor for smooth, low-maintenance operation
• Integrated Smart Gauge with speed & height controls and automatic day/night display
• Three selectable lift speeds: Slow, Medium, Fast
• Three Quick Set memory positions for instant recall of preferred engine heights
• Lift Control with manual adjustment and double-tap rapid movement
• Rated for outboards up to 300 HP and 625 lbs dry weight
• Heavy-duty aluminum construction, U.S.A. manufacture
• Available setbacks: 4", 6", 8", 10", 12"

Technical specifications

• Product type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Classic (standard)
• Finish: Black (anodized)
• Setback options: 4", 6", 8", 10", 12"
• Maximum horsepower: 300 HP
• Maximum engine weight (dry): 625 lbs
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor type: Brushless
• Controls: Smart Gauge (speed & height controls, light-sensing display)
• Lift speeds: Slow, Medium, Fast
• Saved height positions: Three
• Country of origin: Made in U.S.A.

Compatibility & options

• Designed for outboard-equipped boats requiring quick, repeatable engine height adjustment
• Multiple setback sizes to optimize propeller immersion, trim and hull interaction
• Suitable for center-console, bay, tournament and offshore applications within rated engine limits
• Available accessories and mounting hardware depend on hull/application — consult dealer for fitment

Ordering & support

• Model: ATLAS™ EDGE Classic hydraulic jack plate
• Choose setback and verify engine weight/HP before ordering
• Manufactured in the U.S.A.; technical support available through T-H Marine™/Power-Pole® network
