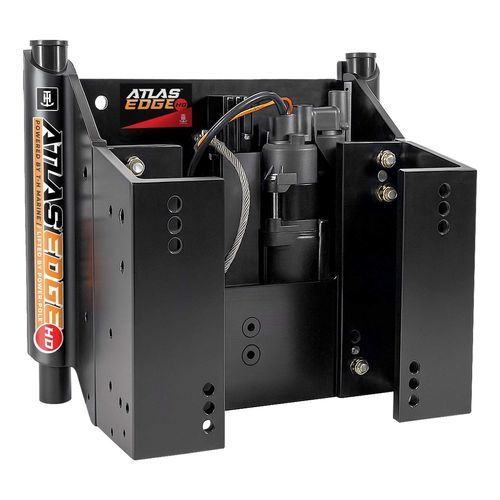

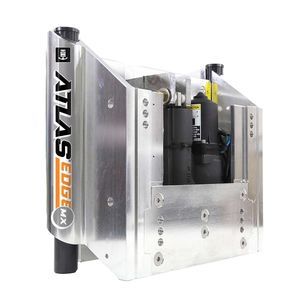

Boat engine bracket AHJE-10VHD-B-DP

adjustablehydraulic jack platealuminum

Product Overview
The ATLAS™ EDGE Heavy Duty hydraulic setback jack plate provides high-capacity outboard support and fast, intelligent height control in a durable black finish. Rated for engines up to 450 HP and 810 lbs dry weight, it combines a brushless motor with a sealed hydraulic unit to deliver smooth, ultra-fast height adjustment with minimal routine maintenance.

Highlights

• Rated for engines up to 450 HP and 810 lbs dry weight
• Brushless motor with maintenance-free operation
• Smart Gauge with lift speed control and three saved height presets

Features

• Heavy Duty aluminum construction for large, high-horsepower outboards
• Supports engines up to 450 HP and 810 lbs dry weight
• Brushless motor for smooth, responsive adjustment
• Sealed hydraulic unit requiring no routine maintenance
• Integrated Smart Gauge for convenient jack plate control
• Three selectable lift speeds: Slow, Medium, Fast
• Three custom presets for saved engine heights
• Speed indicator showing the selected lift speed
• Ambient light sensor for day/night display adjustment
• Double-tap control for rapid full-speed movement
• Hydraulic rise: 5.75"
• Total rise: 8.25"–9.75"
• Aluminum construction with durable black finish
• Made in the U.S.A.
• Available setbacks: 4", 6", 8", 10", 12"

Control & Operation
The integrated Smart Gauge allows precise selection of lift speed (Slow, Medium, Fast), displays the active speed, and stores three custom height presets for instant recall. Double-tap on the control initiates full-speed movement when rapid adjustment is required. The gauge includes a light sensor to automatically optimize display contrast for day or night operation.

Design & Durability
Built from aluminum with a durable black finish, the Heavy Duty configuration is engineered for larger outboards and demanding use. The sealed hydraulic unit and brushless motor minimize routine maintenance while supporting optional remote control accessories.

Specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Black
• Available Setbacks: 4", 6", 8", 10", 12"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lbs. dry weight
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Mounting Bolts: Not included
• Country of Origin: Made in U.S.A.
