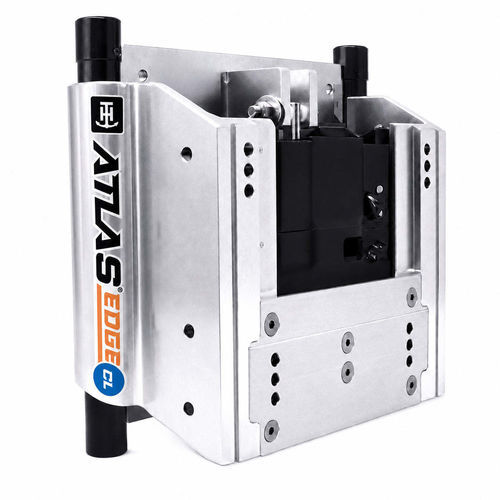

Boat engine bracket AHJE-14V-DP

adjustablehydraulic jack platealuminum

Overview
The ATLAS™ EDGE Standard hydraulic setback jack plate provides precise, adjustable outboard height control for serious boating applications. Developed by T-H Marine™ in collaboration with Power-Pole®, the unit pairs a maintenance-free brushless motor with an integrated Smart Gauge for intuitive on-water adjustment. Selectable lift speeds and Quick Set positions enable rapid adaptation to changing water and load conditions.

Highlights

• Fast, precise outboard height adjustment for improved control and on-water performance
• Brushless motor for maintenance-free operation
• Smart Gauge with speed and height controls
• Rated for outboards up to 300 HP and 625 lbs. (dry weight)

Features

• Powerful brushless motor provides smooth, responsive height adjustment
• Smart Gauge offers clear, intuitive control of jack plate operation
• Three selectable lift speeds: Slow, Medium, and Fast
• Three Quick Set positions provide rapid access to saved engine heights
• Light-sensing display automatically adjusts for day or night visibility
• Lift Control allows easy manual adjustment and rapid movement (double-tap for fast movement)
• Heavy-duty aluminum construction designed for marine environments
• Supports outboard engines up to 300 HP and 625 lbs. dry weight
• Manufactured in the U.S.A.

Lead time
Lead time (business days): 7 to 14

Warnings
WARNING: Cancer and Reproductive Harm

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Standard
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", and 14"
• Maximum Horsepower: 300 HP
• Maximum Engine Weight: 625 lbs. (dry weight)
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Controls: Smart Gauge
• Lift Speeds: Slow, Medium, and Fast
• Saved Height Positions: Three
• Country of Origin: Made in U.S.A.
• SKU: AHJE-6V-DP
