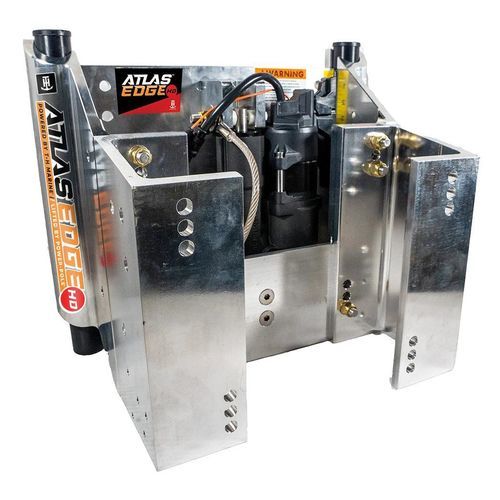

Boat engine bracket AHJE-6VHD-DPhydraulic jack platealuminum
Add to favorites
Compare this product
Characteristics
- Application domain
- for boat
- Type
- hydraulic jack plate
- Material
- aluminum
- Max. engine power
450 ch
(450 hp)- Max. engine weight
810 lb
(367 kg)
Description
Overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate provides fast, precise outboard height control for large, high-power outboards. Rated for up to 450 HP and 810 lbs (dry), it combines a brushless motor with a sealed hydraulic unit and an integrated EDGE Smart Gauge for intuitive, low-maintenance operation and fine tuning of engine height to match water, load and speed.
Highlights
Features
Additional Description
Developed with T-H Marine™ components and lifted by Power-Pole®, the ATLAS EDGE system combines a brushless motor and sealed hydraulic unit to deliver fast, reliable height adjustment without routine motor or hydraulic service. The EDGE Smart Gauge provides selectable lift speeds, a speed indicator, three user presets and double-tap full-speed movement; the display automatically adjusts for day or night visibility.
Technical specifications
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate provides fast, precise outboard height control for large, high-power outboards. Rated for up to 450 HP and 810 lbs (dry), it combines a brushless motor with a sealed hydraulic unit and an integrated EDGE Smart Gauge for intuitive, low-maintenance operation and fine tuning of engine height to match water, load and speed.
Highlights
- Supports outboards up to 450 HP and 810 lbs dry weight
- Brushless motor with maintenance-free operation
- EDGE Smart Gauge with speed control and three saved height presets
Features
- Heavy Duty configuration engineered for large outboards
- Brushless motor for smooth, responsive lift
- Sealed hydraulic unit requiring no routine maintenance
- Integrated Smart Gauge with Slow, Medium and Fast lift speeds
- Three custom presets for saved engine heights and a visual speed indicator
- Light sensor for automatic day/night display adjustment
- Double-tap control for rapid full-speed movement
- 5.75" hydraulic rise; 8.25"–9.75" total rise
- Aluminum construction with polished finish
- Available setbacks: 4", 6", 8", 10", 12", 14"
- Made in the U.S.A.
Additional Description
Developed with T-H Marine™ components and lifted by Power-Pole®, the ATLAS EDGE system combines a brushless motor and sealed hydraulic unit to deliver fast, reliable height adjustment without routine motor or hydraulic service. The EDGE Smart Gauge provides selectable lift speeds, a speed indicator, three user presets and double-tap full-speed movement; the display automatically adjusts for day or night visibility.
Technical specifications
- Product Type: Hydraulic setback jack plate
- Series: ATLAS™ EDGE
- Configuration: Heavy Duty
- Finish: Polished aluminum
- Available Setbacks: 4", 6", 8", 10", 12", 14"
- Maximum Horsepower: 450 HP
- Maximum Engine Weight: 810 lbs dry weight
- Hydraulic Rise: 5.75"
- Total Rise: 8.25"–9.75"
- Transom-Side Width: 16 3/8"
- Transom-Side Height: 12 1/2"
- Material: Aluminum
- Motor Type: Brushless
- Hydraulic Unit: Sealed
- Lift Speeds: Slow, Medium, Fast
- Custom Saved Heights: Three
- Included Controls: Smart Gauge
- Mounting Bolts: Not included
- Country of Origin: Made in U.S.A.
