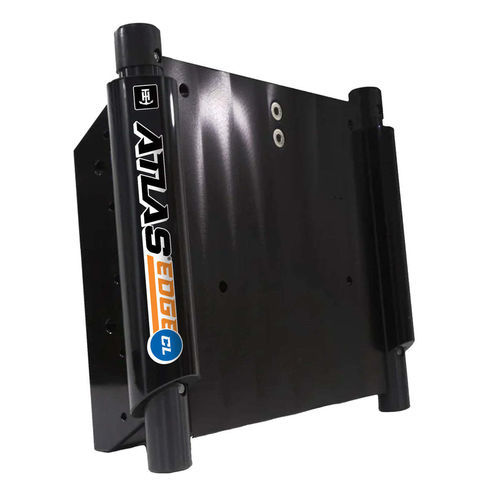

Boat engine bracket AHJE-6V-B-DP

adjustablehydraulic jack platealuminum

Overview
The ATLAS™ EDGE Classic Hydraulic Jack Plate from T-H Marine™ and Power-Pole® provides advanced outboard height control with a brushless motor and Smart Gauge for precise, maintenance-free operation. Engineered for anglers and performance boaters, it adapts quickly to changing water and load conditions while offering intuitive control.

Product Highlights

• Brushless motor for fast, maintenance-free operation
• Smart Gauge with speed and height controls
• Rated for outboards up to 300 HP and 625 lbs dry weight
• Durable black anodized finish

Features

• Powerful brushless motor provides smooth, responsive height adjustment
• Smart Gauge offers clear, intuitive control of jack plate operation
• Three selectable lift speeds: Slow, Medium, and Fast
• Three Quick Set positions provide rapid access to saved engine heights
• Light-sensing display automatically adjusts for day or night visibility
• Lift Control allows easy manual adjustment and rapid movement
• Heavy-duty aluminum construction with a durable black finish
• Supports outboard engines up to 300 HP and 625 lbs dry weight
• Manufactured in the U.S.A.
• Available in 4", 6", 8", 10", and 12" setback options

Detailed Description
The ATLAS EDGE jack plate is built for performance and adaptability. Choose between Slow, Medium, and Fast lift speeds to match operating conditions or personal preference. Three Quick Set positions allow return to saved engine heights with a single tap; double-tap functionality provides rapid movement when immediate adjustment is needed. A built-in ambient light sensor adjusts the Smart Gauge display for optimal visibility day or night. Constructed from heavy-duty aluminum with a protective black finish, ATLAS EDGE delivers dependable performance and long service life.

Specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Classic/Standard
• Finish: Black (black anodized)
• Available Setbacks: 4", 6", 8", 10", 12"
• Maximum Horsepower: 300 HP
• Maximum Engine Weight: 625 lbs. (dry weight)
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Controls: Smart Gauge (speed and height controls)
• Lift Speeds: Slow, Medium, Fast
• Saved Height Positions: Three (Quick Set positions)
• Country of Origin: Made in U.S.A.
