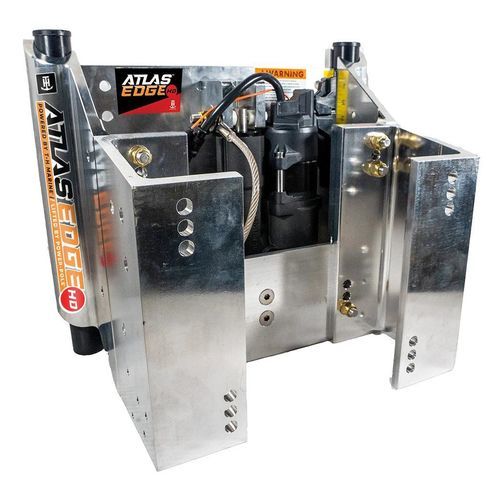

Boat engine bracket AHJE-8VHD-DP

adjustablehydraulic jack platealuminum

Overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate brings the speed, intelligence, and precise control of the ATLAS EDGE platform to larger outboard applications. Rated for engines up to 450 HP and 810 lbs. dry weight, it is engineered for serious boaters who demand strength, durability, and reliable performance on the water. Powered by T-H Marine™ and lifted by Power-Pole®, ATLAS EDGE uses a brushless motor and sealed hydraulic unit to deliver smooth, ultra-fast height adjustment without routine motor or hydraulic maintenance. The integrated Smart Gauge provides advanced control including selectable lift speeds and saved height presets.

Highlights

• Rated for engines up to 450 HP and 810 lbs. dry weight
• Brushless motor with maintenance-free operation
• Smart Gauge with speed control and saved heights (three custom presets)

Features

• Heavy Duty construction for large, high-horsepower outboards
• Brushless motor delivers smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine maintenance
• Smart Gauge provides convenient jack plate control
• Three selectable lift speeds: Slow, Medium, and Fast
• Speed indicator displays the currently selected lift speed
• Light sensor automatically adjusts the display for day or night use
• Double-tap controls provide rapid movement at full speed
• 5.75" of hydraulic rise
• 8.25"–9.75" of total rise
• Aluminum construction with a polished finish
• Made in the U.S.A.
• Available setbacks: 4", 6", 8", 10", 12", 14"

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lbs. (dry weight)
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three presets
• Included Controls: Smart Gauge (speed indicator, light sensor, double-tap)
• Mounting Bolts: Not included
• Country of Origin: Made in U.S.A.
• SKU: AHJE-8VHD-DP
• Lead time (business days): 7 to 14
