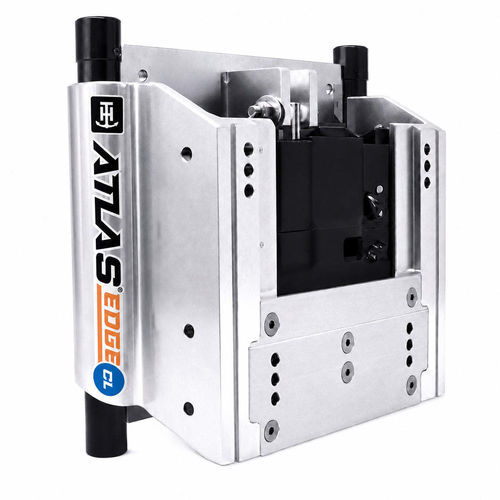

Boat engine bracket AHJE-10V-DP

adjustablehydraulic jack platealuminum

Overview
The ATLAS™ EDGE Standard Hydraulic Jack Plate provides precise outboard height control with a brushless motor and integrated Smart Gauge. Engineered for marine use, it enables fast, repeatable adjustments to adapt to changing water and load conditions while minimizing routine motor maintenance.

Highlights

• Brushless motor for fast, maintenance-free operation
• Smart Gauge with speed and height controls and light-sensing display
• Rated for outboards up to 300 HP and 625 lbs. dry weight

Features

• Brushless motor delivers smooth, responsive height adjustment
• Smart Gauge places essential jack plate functions and display within easy reach
• Three selectable lift speeds: Slow, Medium, Fast
• Three Quick Set positions for rapid recall of saved engine heights
• Light-sensing display that automatically adjusts for day or night visibility
• Lift Control for manual adjustment and rapid movement
• Heavy-duty aluminum construction suitable for marine environments
• Supports outboard engines up to 300 HP and 625 lbs. (dry weight)
• Manufactured in the U.S.A.

Additional Product Notes
Lead time (business days): 7 to 14

Technical Specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Standard
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14"
• Maximum Horsepower: 300 HP
• Maximum Engine Weight: 625 lbs. (dry weight)
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Controls: Smart Gauge (speed and height controls, light-sensing display)
• Lift Speeds: Slow, Medium, Fast
• Saved Height Positions: Three (Quick Set positions)
• SKU: AHJE-10V-DP
• Country of Origin: Made in U.S.A.
