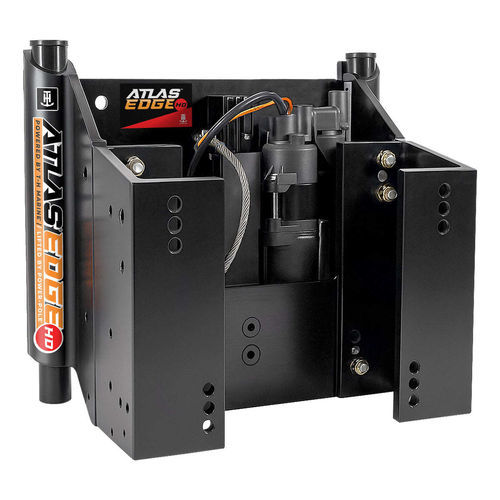

Boat engine bracket AHJE-8VHD-B-DP

hydraulic jack platealuminum

Overview
The ATLAS™ EDGE Heavy Duty hydraulic setback jack plate provides rapid, precise outboard height control for large, high-horsepower engines. Rated for engines up to 450 HP and 810 lb dry weight, it combines a brushless motor with a sealed hydraulic unit to deliver smooth, low-maintenance operation suitable for commercial and serious recreational applications.

Highlights

• Rated for engines up to 450 HP and 810 lb
• Brushless motor for maintenance-free operation
• Smart Gauge with speed control and three saved height presets

Features

• Heavy Duty construction optimized for large outboards
• Supports engines up to 450 HP and 810 lb dry weight
• Brushless motor provides smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine maintenance
• Smart Gauge control includes speed selection, saved heights and light sensor
• Three selectable lift speeds: Slow, Medium, Fast
• Double-tap control for rapid full-speed movement
• 5.75" hydraulic rise; 8.25"–9.75" total rise
• Available setbacks: 4", 6", 8", 10", 12"
• Aluminum construction with durable black finish; Made in U.S.A.

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Black
• Available Setbacks: 4", 6", 8", 10", 12"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lb (dry)
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Country of Origin: Made in U.S.A.
• Mounting Bolts: Not included
