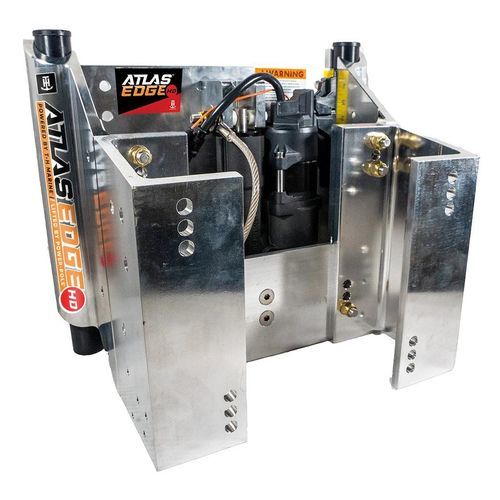

Boat engine bracket AHJE-12VHD-DP

hydraulic jack platealuminum

Product Overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate brings the speed, intelligence, and precise control of the ATLAS EDGE platform to larger outboard applications. Rated for engines up to 450 HP (≈336 kW) and 810 lbs dry weight (≈367 kg), it is engineered for demanding boaters who require reliable, controllable height adjustment. Powered by a brushless motor and a sealed hydraulic unit, the system delivers smooth, ultra-fast height adjustment with minimal routine maintenance. The integrated Smart Gauge provides advanced control including selectable lift speeds, three saved height presets, and a light-sensitive display for day/night visibility.

Highlights

• Rated for engines up to 450 HP (≈336 kW) and 810 lbs dry weight (≈367 kg)
• Brushless motor with maintenance-free operation
• Smart Gauge with selectable speeds and three saved height presets
• Sealed hydraulic unit — no routine hydraulic maintenance
• Polished aluminum construction; made in the U.S.A.

Availability / Lead Time
Lead time (business days): 7 to 14

Specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14" (≈101.6, 152.4, 203.2, 254, 304.8, 355.6 mm)
• Maximum Horsepower: 450 HP (≈336 kW)
• Maximum Engine Weight: 810 lbs dry weight (≈367 kg)
• Hydraulic Rise: 5.75" (≈146 mm)
• Total Rise: 8.25"–9.75" (≈210–248 mm)
• Transom-Side Width: 16 3/8" (≈416 mm)
• Transom-Side Height: 12 1/2" (≈318 mm)
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast (three selectable speeds)
• Custom Saved Heights: Three presets
• Included Controls: Smart Gauge (speed indicator, light sensor, double-tap controls)
• Mounting Bolts: Not included
• Country of Origin: Made in U.S.A.
• SKU (example variant on page): AHJE-12VHD-DP
