Boat engine bracket AHJE-12VHD-B-DP

hydraulic jack platealuminum

Overview

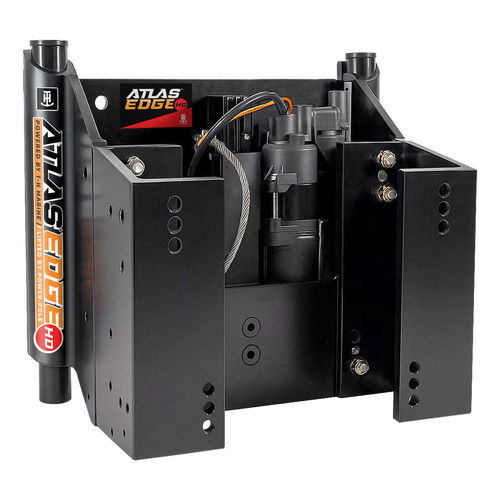

The ATLAS™ EDGE Heavy Duty hydraulic setback jack plate adapts the speed, control and intelligence of the ATLAS EDGE platform to large outboard applications. Rated for outboards up to 450 HP and 810 lbs dry weight, it is engineered to provide fast, precise trim and height adjustment for optimizing performance across varying water and load conditions. The system pairs a brushless motor with a sealed hydraulic unit for smooth, low-maintenance operation.

Highlights

• Rated for engines up to 450 HP and 810 lbs.
• Brushless motor with maintenance-free operation
• Integrated Smart Gauge with selectable lift speeds and saved height presets

Features

• Heavy Duty configuration engineered for large, high-horsepower outboards
• Brushless motor delivers smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine hydraulic maintenance
• Smart Gauge provides convenient jack plate control and saved positions
• Three selectable lift speeds: Slow, Medium, Fast
• Three custom presets for quick access to saved engine heights
• Speed indicator shows the currently selected lift speed
• Ambient light sensor adjusts the display for day/night visibility
• Double-tap controls enable rapid movement at full speed
• Hydraulic rise: 5.75"
• Total rise: 8.25"–9.75"
• Aluminum construction with durable black finish
• Made in the U.S.A.
• Available setbacks: 4", 6", 8", 10", 12"

Product details
Configuration: Heavy Duty. Finish: Black. Integrated Smart Gauge with preserved height presets and selectable lift speeds. Designed for large outboards up to 450 HP; engineered for fast, precise height adjustments to optimize performance as water, load and operating conditions change.

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Black
• Available Setbacks: 4", 6", 8", 10", 12"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lbs. dry weight
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Country of Origin: Made in U.S.A.
• Mounting Bolts: Not included
