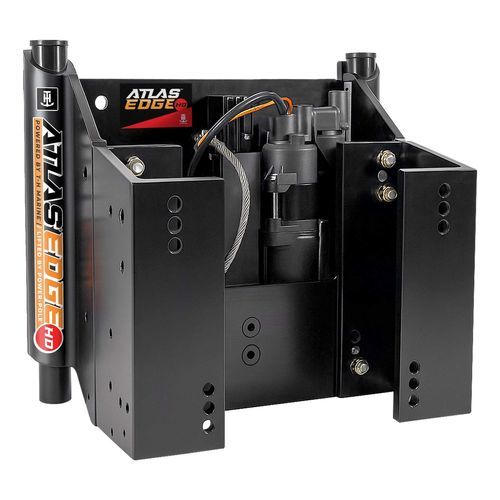

Boat engine bracket AHJE-6VHD-B-DP

hydraulic jack platealuminum

Product overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate brings the speed, intelligence, and precise control of the ATLAS EDGE platform to larger outboard applications. Rated for engines up to 450 HP and 810 lbs. dry weight, it is engineered for serious boaters who demand strength, durability, and reliable performance on the water.

Highlights

• Rated for engines up to 450 HP and 810 lbs.
• Brushless motor with maintenance-free operation
• Smart Gauge with speed control and saved heights

Features

• Heavy Duty construction for large, high-horsepower outboards
• Brushless motor delivers smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine maintenance
• Smart Gauge provides convenient jack plate control
• Three selectable lift speeds: Slow, Medium, and Fast
• Three custom presets provide quick access to saved engine heights
• Speed indicator displays the currently selected lift speed
• Light sensor automatically adjusts the display for day or night use
• Double-tap controls provide rapid movement at full speed
• 5.75 in of hydraulic rise
• 8.25–9.75 in of total rise
• Aluminum construction with a durable black finish
• Made in the U.S.A.
• Available in 4 in, 6 in, 8 in, 10 in, and 12 in setbacks

Additional information
Powered by T-H Marine™ and lifted by Power-Pole®, ATLAS EDGE uses a brushless motor and sealed hydraulic unit to deliver smooth, ultra-fast height adjustment without routine motor or hydraulic maintenance. Fine-tune engine height for efficiency and control or make immediate adjustments as water, load, and operating conditions change. The integrated Smart Gauge offers Slow, Medium, or Fast lift speed, a visual speed indicator, three custom presets for saved heights, and a light-sensitive display for day/night visibility.

Specifications / Technical data

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Black
• Available Setbacks: 4 in, 6 in, 8 in, 10 in, and 12 in
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lbs. dry weight
• Hydraulic Rise: 5.75 in
• Total Rise: 8.25–9.75 in
• Transom-Side Width: 16 3/8 in
• Transom-Side Height: 12 1/2 in
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, and Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Country of Origin: Made in U.S.A.
• Mounting Bolts: Not included
