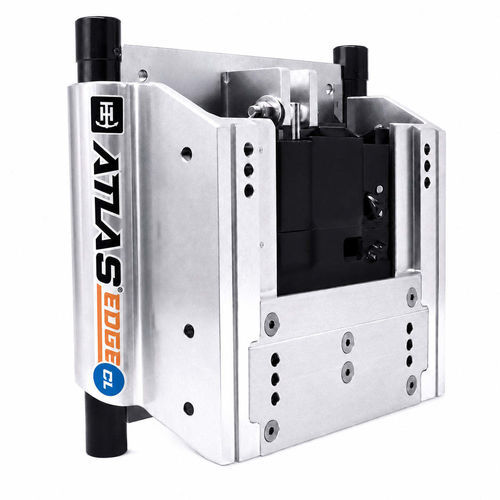

Boat engine bracket AHJE-8V-DP

hydraulic jack platealuminum

Overview
The ATLAS™ EDGE Standard Hydraulic Jack Plate (SKU AHJE-8V-DP) delivers precise outboard height control with a brushless motor and integrated Smart Gauge. Selectable lift speeds, three Quick Set positions and responsive Lift Control let operators adapt quickly to changing water and load conditions. Polished aluminum construction and purpose-designed components simplify installation and service.

Highlights

• Brushless motor for fast, low-maintenance operation
• Smart Gauge with speed and height controls
• Rated for outboards up to 300 HP and 625 lbs. dry weight

Features

• Powerful brushless motor provides smooth, responsive height adjustment
• Smart Gauge offers clear, intuitive control of jack plate operation
• Three selectable lift speeds: Slow, Medium, and Fast
• Three Quick Set positions provide rapid access to saved engine heights
• Light-sensing display automatically adjusts for day or night visibility
• Lift Control allows easy manual adjustment and rapid movement
• Heavy-duty aluminum construction for demanding marine environments
• Supports outboard engines up to 300 HP and 625 lbs. dry weight
• Manufactured in the U.S.A.

Additional Information
Lead time (business days): 7 to 14

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Standard
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", and 14"
• Maximum Horsepower: 300 HP
• Maximum Engine Weight: 625 lbs. dry weight
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Controls: Smart Gauge (speed and height controls)
• Lift Speeds: Slow, Medium, and Fast
• Saved Height Positions: Three
• SKU: AHJE-8V-DP
• Country of Origin: Made in U.S.A.
