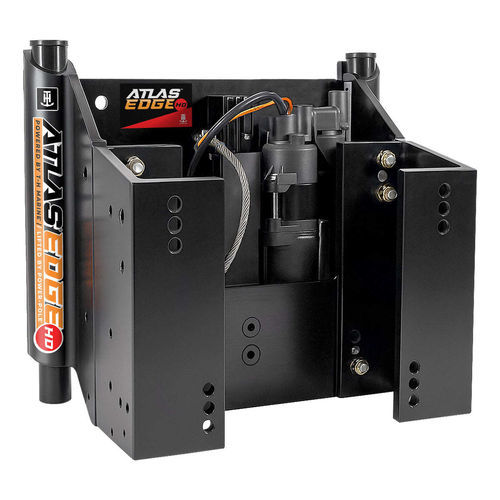

Boat engine bracket AHJE-4VHD-B-DP

hydraulic jack platealuminum

Overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate is a hydraulic setback jack plate designed for large outboard applications. Rated for engines up to 450 HP and 810 lb dry weight, it provides precise hydraulic lift control and configurable setback options for professional and recreational boats.

Key highlights

• Rated for engines up to 450 HP and 810 lb dry weight
• Brushless motor with maintenance-free operation
• Smart Gauge with speed control and three saved height presets

Features

• Heavy Duty configuration for high-horsepower outboards
• Sealed hydraulic unit requiring no routine maintenance
• Smooth, responsive height adjustment via brushless motor
• Three selectable lift speeds: Slow, Medium, Fast
• Three custom saved heights for rapid repositioning
• Speed indicator and light sensor for day/night display
• Double-tap control for full-speed movement
• Hydraulic rise: 5.75"; Total rise: 8.25"–9.75"
• Available setbacks: 4", 6", 8", 10", 12"
• Aluminum construction with black finish; mounting bolts not included
• Made in U.S.A.

Lead time
Lead time (business days): 7 to 14

Technical specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Black
• Available Setbacks: 4", 6", 8", 10", 12"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lb (dry weight)
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed
• Lift Speeds: Slow, Medium, Fast
• Custom Saved Heights: Three
• Included Controls: Smart Gauge
• Mounting Bolts: Not included
• Country of Origin: Made in U.S.A.
