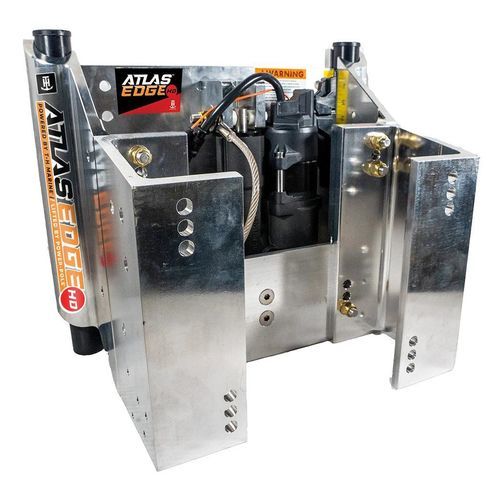

Boat engine bracket AHJE-14VHD-DP

adjustablehydraulic jack platealuminum

Overview
The ATLAS™ EDGE Heavy Duty Hydraulic Jack Plate adapts the ATLAS EDGE platform for large outboard installations, providing fast and precise height control for performance and offshore boats. Rated for engines up to 450 HP and 810 lbs dry weight, it is engineered to deliver reliable trim adjustment under demanding conditions.

Highlights

• Rated for engines up to 450 HP and 810 lbs. dry weight
• Brushless motor with maintenance-free operation
• Smart Gauge with speed control and saved heights

Features

• Heavy Duty construction for large, high-horsepower outboards
• Brushless motor delivers smooth, responsive height adjustment
• Sealed hydraulic unit requires no routine maintenance
• Smart Gauge provides convenient jack plate control
• Three selectable lift speeds: Slow, Medium, and Fast
• Three custom presets provide quick access to saved engine heights
• Speed indicator displays the currently selected lift speed
• Light sensor automatically adjusts the display for day or night use
• Double-tap controls provide rapid movement at full speed
• Aluminum construction with a polished finish
• Made in the U.S.A.
• Available in 4", 6", 8", 10", 12", and 14" setbacks

Additional information

• Powered by T-H Marine™ and lifted by Power-Pole®
• Fine-tune engine height for efficiency and control or make immediate adjustments as water, load, and operating conditions change
• Integrated Smart Gauge includes visual speed indicator, three custom presets, and light-sensitive display for day/night operation

Specifications

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Heavy Duty
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14"
• Maximum Horsepower: 450 HP
• Maximum Engine Weight: 810 lbs. (dry weight)
• Hydraulic Rise: 5.75"
• Total Rise: 8.25"–9.75"
• Transom-Side Width: 16 3/8"
• Transom-Side Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Hydraulic Unit: Sealed (no routine maintenance)
• Lift Speeds: Slow, Medium, Fast (selectable)
• Custom Saved Heights: Three presets
• Included Controls: Smart Gauge (speed indicator, light sensor, double-tap for full speed)
• Mounting Bolts: Not included
• Country of Origin: Made in U.S.A.
• Lead time (business days): 7 to 14
• SKU (example variant): AHJE-14VHD-DP (SKU shown on page)
