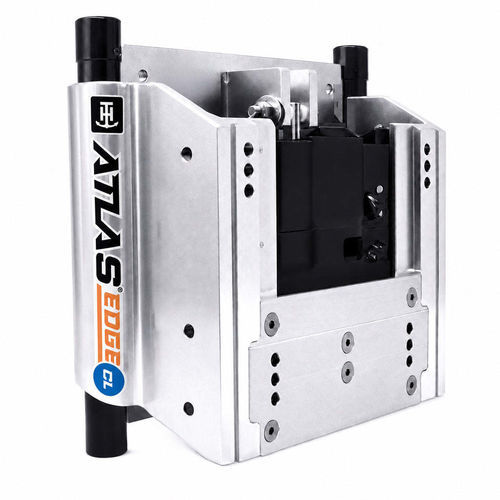

Boat engine bracket AHJE-12V-DP

hydraulic jack platealuminum

Overview
The ATLAS™ EDGE Standard Hydraulic Jack Plate provides fast, precise outboard height control for improved on-water handling and performance. Developed for anglers and powerboat operators, it pairs a brushless motor with an integrated Smart Gauge to offer responsive adjustment without routine motor maintenance. Rated for outboards up to 300 HP and 625 lbs dry weight, with polished aluminum finish and multiple setback options.

Highlights
Fast, reliable adjustment for changing conditions and load scenarios tailored to marine use.

• Brushless motor for maintenance-free, responsive movement
• Smart Gauge with speed and height controls plus light-sensing display
• Rated for up to 300 HP and 625 lbs dry engine weight

Features

• Powerful brushless motor delivers smooth, precise height changes
• Smart Gauge places speed, height and Quick Set controls at the helm
• Three selectable lift speeds: Slow, Medium, Fast
• Three Quick Set memory positions for rapid return to saved heights
• Double-tap for rapid movement to saved positions
• Light-sensing display automatically adjusts for day/night visibility
• Heavy-duty aluminum construction with polished finish for marine environments
• Manufactured in the U.S.A.

Detailed description
ATLAS™ EDGE Standard is designed to give boat operators precise control of engine trim and setback to optimize fuel economy, steering response and planing behavior. The brushless motor ensures responsive adjustments without regular motor service, while the Smart Gauge makes speed and height control intuitive. Choose Slow, Medium or Fast lift speeds to match conditions; use Quick Set positions and double-tap for instant return to preferred engine heights. Available in setbacks from 4" to 14", the unit combines durable aluminum construction with a polished finish suitable for professional and recreational applications.

Specs

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Standard
• Finish: Polished aluminum
• Available Setbacks: 4", 6", 8", 10", 12", 14"
• Maximum Horsepower: 300 HP
• Maximum Engine Weight: 625 lbs dry weight
• Width: 16 3/8"
• Height: 12 1/2"
• Material: Aluminum
• Motor Type: Brushless
• Controls: Smart Gauge (speed and height controls)
• Lift Speeds: Slow, Medium, Fast
• Saved Height Positions: Three (Quick Set)
• Country of Origin: Made in U.S.A.
• Lead time (business days): 7–14

Technical specifications

• Series: ATLAS™ EDGE
• Product Type: Hydraulic setback jack plate
• Finish: Polished aluminum
• Motor: Brushless motor (rapid, maintenance-free)
• Controls: Smart Gauge (speed and height controls, light-sensing display)
• Lift Speeds: Slow, Medium, Fast
• Saved Positions: 3 Quick Set positions (double-tap for rapid movement)
• Max HP: 300 HP
• Max Engine Weight: 625 lbs (dry weight)
• Dimensions: Width 16 3/8", Height 12 1/2"
• Material: Heavy-duty aluminum
• Country of Manufacture: U.S.A.
• Available setbacks: 4", 6", 8", 10", 12", 14"
• Lead time: 7–14 business days
