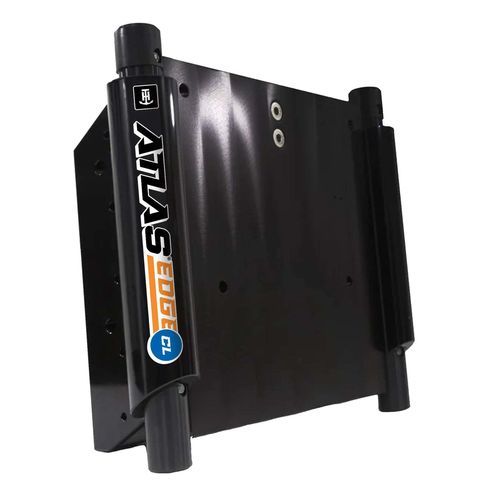

Boat engine bracket AHJE-12V-B-DP

adjustablehydraulic jack platealuminum

Overview Introducing the ATLAS™ EDGE Classic Hydraulic Jack Plate—the next generation of outboard height control from T-H Marine™ and Power-Pole®. Designed for professional and recreational boats alike, ATLAS™ EDGE delivers fast, precise height adjustment with intelligent controls for adapting to changing water, load, and operating conditions. The brushless motor ensures smooth, maintenance-free operation, while the integrated Smart Gauge centralizes speed and height controls for immediate access.

Highlights

• Brushless motor for fast, maintenance-free operation
• Smart Gauge with speed and height controls
• Rated for outboards up to 300 HP and 625 lbs (283.5 kg) dry weight
• Durable black anodized finish (Classic/Standard configuration)

Features

• Powerful brushless motor provides smooth, responsive height adjustment
• Smart Gauge offers clear, intuitive control of jack plate operation
• Three selectable lift speeds: Slow, Medium, and Fast
• Three Quick Set positions for rapid return to saved engine heights (single-tap to return; double-tap for rapid movement)
• Light-sensing display automatically adjusts for day or night visibility
• Lift Control enables easy manual adjustment and fast travel
• Heavy-duty aluminum construction with black anodized finish
• Manufactured in the U.S.A.
• Available setbacks: 4", 6", 8", 10" and 12" (101.6, 152.4, 203.2, 254, 304.8 mm)

Specs

• Product Type: Hydraulic setback jack plate
• Series: ATLAS™ EDGE
• Configuration: Classic/Standard
• Finish: Black anodized
• Available Setbacks: 4", 6", 8", 10", 12" (101.6, 152.4, 203.2, 254, 304.8 mm)
• Maximum Horsepower: 300 HP
• Maximum Engine Weight: 625 lbs (283.5 kg) dry weight
• Width: 16 3/8" (416 mm)
• Height: 12 1/2" (318 mm)
• Material: Aluminum
• Motor Type: Brushless
• Controls: Smart Gauge (speed and height controls)
• Lift Speeds: Slow, Medium, Fast
• Saved Height Positions: Three
• SKU: AHJE-12V-B-DP
• Country of Origin: Made in U.S.A.
