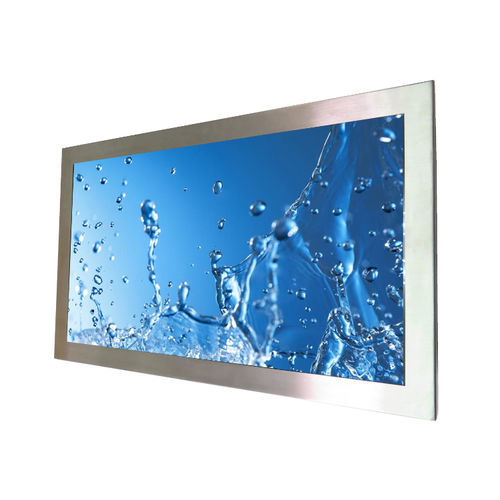

Ship display ITD65CMG1IPHBS2

multi-function65"touch screen

BENEFITS

• Engineered for industrial and semi-outdoor applications with reinforced stainless steel or aluminum alloy enclosures
• Optional projected capacitive (PCAP) or infrared touch for interactive operator control
• Full ingress protection: IP65/IP66 ratings with IP66-sealed I/O options to prevent dust, water and corrosives
• High brightness 1000 nits with optional optical bonding or tempered glass for sunlight readability
• Long service life with LED backlight and components specified for continuous 24/7 operation

OVERVIEW
The ITD65 CMG1IPHBS2 is a fully integrated 65" industrial LCD monitor designed for harsh environments. It pairs a high-brightness TFT panel with a fully sealed stainless steel enclosure and IP-rated I/O to deliver reliable operator interfaces for outdoor kiosks, marine, oil & gas, pharmaceutical and food & beverage applications. Optical bonding between the TFT and the touch/cover glass is available to improve contrast and reduce reflection in high ambient light.

MAIN HIGHLIGHTS / TABLE
Full IP65/IP66 · High Brightness Touchscreen Monitor
Model Name: ITD65 CMG1IPHBS2
IP Rating: Full IP65/IP66 (IP67 optional)
Screen Diagonal (Inch): 65"
Display Active Screen Size: 1428.48 (H) × 803.52 (V) mm
Aspect Ratio: 16:9
Physical Resolution: 1920 × 1080
Maximum Resolution Supported: 1920 × 1080
Colors: 16.7M
Brightness: 1000 nits
Contrast Ratio: 4000:1
View Angles: 89/89/89/89
Backlight / Backlight Lifetime: LED Backlight with 50000 Hours’ Lifetime

TOUCH PANEL
Touch Options: PCAP, Infrared
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi

DEFAULT WATERPROOF I/O
Video Input: 1 × HDMI
Audio: Optional
Touch Connector: 1 × USB (Optional)
Power Connector: 1 × AC 110-240V input (DC9-36V optional)

OPERATION
Operating Temperature Range: 0 ~ 50 °C
Humidity Range (RH): 10 - 90%
24/7/365 Use: Supported

POWER
Power Indicator: N/A
Power Input: AC 110-240V
Power Consumption: 350W

ORDER INFORMATION (examples)
65" 1000nits Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing — ITD65CMT2IPHBA1
65" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD65CMT5IPHBA1
65" 1000nits Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing — ITD65CMT2IPHBS1
65" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD65CMT5IPHBS1
65" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD65CMG1IPHBA1
65" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD65CMG1IPHBS1

FEATURES / TECHNICAL SPECIFICATIONS

• Model series: ITD65
• Screen size: 65 inch
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 1000 nits (high brightness for sunlight readability)
• Contrast ratio: 4000:1
• Colors: 16.7M
• Viewing angles: 89/89/89/89
• Backlight: LED, lifetime ~50,000 hours
• IP rating: Full IP65/IP66 (IP67 optional)
• Touch options: PCAP, Infrared; touch drivers for Windows, Linux, Android, Mac, Raspberry Pi
• Video input: HDMI (1 ×)
• Audio: optional
• Touch connector: USB (1 ×, optional)
• Power: AC 110-240V input (DC9-36V optional)
• Power consumption: 350W
• Operating temperature: 0 ~ 50 °C
• Humidity: 10 - 90% RH
• Designed for 24/7/365 operation
• Enclosure options: stainless steel or aluminum alloy, with optional optical bonding or tempered glass
