Marine display ITD18CMG1IPHBA1
for shipsfor control18.5"

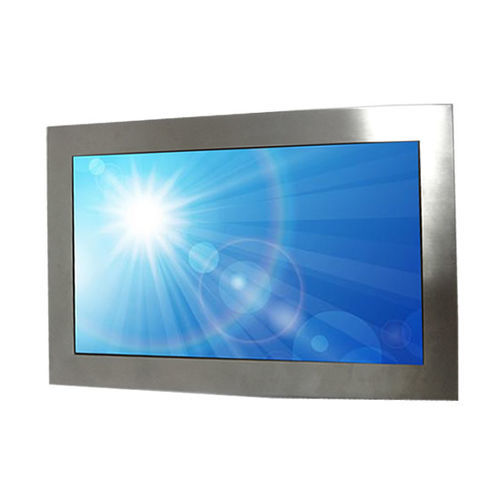

Marine display - ITD18CMG1IPHBA1 - Shenzhen ITD Display Equipment Co., LTD - for ships / for control / 18.5"

Marine display - ITD18CMG1IPHBA1 - Shenzhen ITD Display Equipment Co., LTD - for ships / for control / 18.5" - image - 2

Add to favorites

Compare this product

Characteristics

Application domain: for ships, marine
Function: for control
Display size: 18.5"
Other characteristics: touch screen, waterproof

Description

BENEFITS

Industrial-grade, fully sealed touchscreen LCD for semi-outdoor and outdoor installations
Touch options: Resistive and PCAP with multi-OS driver support
Full IP65/IP66 ingress protection with optional IP67 — protection against dust, water and corrosive agents
Choice of aluminum or stainless steel enclosures with cooling fin for extended reliability
High brightness options (1000–1500 cd/m²) for improved readability in sunlight
Designed for continuous 24/7 operation in demanding environments

OVERVIEW
The ITD18CMG1IPHBA1 is a fully integrated 18.5" touchscreen LCD designed for industrial and semi-outdoor applications. The unit combines a high-brightness TFT panel, tempered glass touch surface, and a fully sealed IP65/IP66-rated chassis. Optical bonding is available to reduce reflection and improve visibility under direct sunlight. Typical use cases include outdoor kiosks, marine consoles, oil & gas control panels, pharmaceutical production lines and other industrial operator interfaces.

KEY SPECIFICATIONS

Model Name: ITD18CMG1IPHBA1
IP Rating: Full IP65/IP66 (IP67 optional)
Screen Diagonal: 18.5"
Active Screen Size: 409.8 × 230.4 mm
Aspect Ratio: 4:3
Physical Resolution: 1366 × 768 (max supported 1920 × 1080)
Colors: 16.7M
Brightness: 1000 cd/m² (options up to 1500 cd/m²)
Contrast Ratio: 1000:1
Viewing Angles: 85/85/80/80
Backlight: LED, 50,000 hours lifetime

TOUCH PANEL

Touch Options: Resistive, PCAP
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi

INPUT / OUTPUT

Video Input: 1 × VGA (standard); 1 × HDMI (optional)
Touch Connector: 1 × USB (optional)
Power Connector: DC 2.0 (input DC 12V)

OPERATION

Operating Temperature: -10 ~ 60 °C (optionally -20 ~ 70 °C)
Humidity Range: 10 - 90% RH
24/7/365 Use: Supported

POWER

Power Input: DC 12V
Connector: DC2.0
Power Consumption: 38 W

ORDER INFORMATION

18.5" 1000 nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing — ITD18CMT1IPHBA1
18.5" 1000 nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD18CMT5IPHBA1
18.5" 1000 nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing — ITD18CMT1IPHBS1
18.5" 1000 nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD18CMT5IPHBS1
18.5" 1000 nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD18CMG1IPHBA1
18.5" 1000 nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD18CMG1IPHBS1

TECHNICAL SPECIFICATIONS

Model Name: ITD18CMG1IPHBA1
IP Rating: Full IP65/IP66 (IP67 optional)
Screen Diagonal: 18.5"
Active Screen Size: 409.8 × 230.4 mm
Aspect Ratio: 4:3
Physical Resolution: 1366 × 768 (max supported 1920 × 1080)
Colors: 16.7M
Brightness: 1000 cd/m² (options up to 1500 cd/m²)
Contrast Ratio: 1000:1
Viewing Angles: 85/85/80/80
Backlight: LED, 50,000 hours lifetime
Touch Options: Resistive, PCAP; drivers for Windows, Linux, Android, Mac, Raspberry Pi
Video Input: VGA (standard), HDMI (optional)
Touch Connector: USB (optional)
Power: DC 12V input, DC2.0 connector, power consumption 38 W
Operating Temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
Humidity: 10 - 90% RH
Designed for rugged/semi-outdoor/outdoor industrial applications
