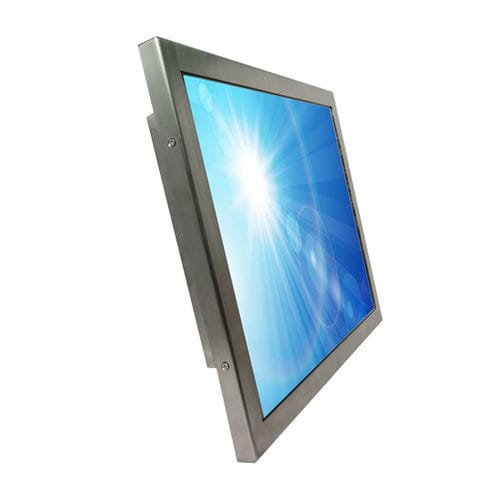

Marine display ITD10CMG1IPHBA1

for control10.4"touch screen

BENEFITS

• Industrial heavy-duty construction for continuous operation in harsh environments
• Optional touch technologies: resistive and PCAP
• Rugged ingress protection: NEMA 12/4X/4 and IP52/IP56/IP65 from all directions
• Enclosure options: steel, stainless steel or aluminum alloy with cooling fin
• Full IP65 sealed I/O connectors to protect against dust, water and corrosive agents
• High brightness options: 1000 cd/m² to 1500 cd/m²
• Extended product lifecycle for project continuity

OVERVIEW
ITD full IP65 sunlight-readable LCD touchscreen displays are fully integrated units combining a high-brightness TFT LCD, touchscreen, and fully sealed stainless steel or aluminum-alloy chassis with IP65/NEMA 4 ingress protection. The enclosures are easy to clean and corrosion resistant. Optical bonding between the TFT panel and tempered glass/touch panel is available to improve visibility in direct sunlight. These monitors are designed for demanding industrial applications such as outdoor kiosks, beverage, marine, oil & gas, pharmaceutical and tobacco industries for operator control and monitoring in semi-outdoor and outdoor settings.

Caractéristiques / Spécifications techniques

• Model Name: ITD10CMG1IPHBA1
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Diagonal: 10.4"
• Display Active Screen Size: 211.2(H) × 158.4(V) mm
• Aspect Ratio: 4:3
• Physical Resolution: 800 × 600 (1024 × 768 optional)
• Maximum Resolution Supported: 1920 × 1080
• Colors: 16.7M
• Brightness: 1000 cd/m² (options up to 1500 cd/m²)
• Contrast Ratio: 600:1
• View Angles: 70/70/60/60
• Backlight / Lifetime: LED backlight, 50,000 hours
• Touch Options: Resistive, PCAP
• Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video Input: 1 × VGA; 1 × HDMI (optional)
• Audio: N/A
• Touch Connector: 1 × USB (optional)
• Power Connector: 1 × DC2.0
• Power Input: DC 12V
• Power Consumption: 16 W
• Operating Temperature Range: -10 ~ 60 °C ( -20 ~ 70 °C optional )
• Humidity Range (RH): 10-90%
• 24/7/365 Use: Supported
• Order Information (examples): 10.4" 1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing (ITD10CMT1IPHBA1); 10.4" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing (ITD10CMT5IPHBA1); 10.4" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing (ITD10CMG1IPHBA1); same configurations available with Stainless Steel Housing
