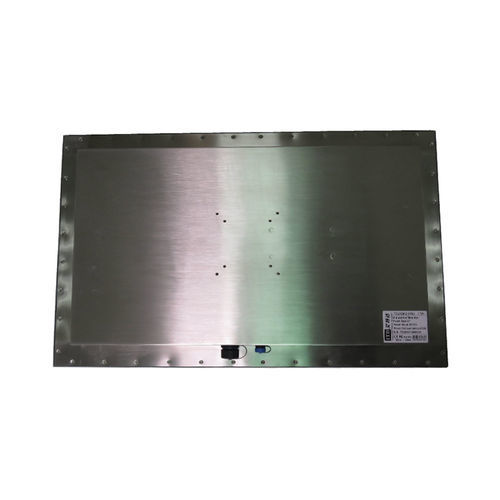

Ship display ITD32CMG1IPHBS2

for control32"touch screen

BENEFITS

• Industrial-grade, fully sealed touchscreen monitor for harsh environments
• Optional touch technologies: PCAP or infrared
• Full ingress protection from all directions: IP65/IP66 (IP67 optional)
• Stainless steel or aluminum alloy corrosion‑resistant enclosures, easy to clean
• Full IP66 sealed I/O connectors to protect against dust, water and corrosive agents
• High brightness (1000 nits) with optional optical bonding for improved sunlight readability
• Designed for long product lifecycle and continuous 24/7 operation

OVERVIEW
ITD full IP65/IP66 sunlight‑readable LCD touchscreen displays are fully integrated units combining a high‑brightness TFT LCD, optional touch panel, and a waterproof, dustproof stainless steel or aluminum alloy chassis. Optical bonding between the TFT panel and tempered glass/touch panel is available to reduce reflections and improve visibility in direct sunlight. The product is intended for semi‑outdoor and outdoor industrial applications including kiosks, beverage, marine, oil & gas, pharmaceutical and tobacco industries for operator control and monitoring.

MAIN FEATURES / TABLE
Full IP65/IP66 high‑brightness touchscreen monitor
Model Name: ITD32CMG1IPHBS2
IP Rating: Full IP65/IP66 (IP67 optional)

LCD Panel
Screen diagonal: 32"
Active area: 698.4 (H) × 392.85 (V) mm
Aspect ratio: 16:9
Resolution (physical & max): 1920 × 1080 (FHD)
Colors: 16.7M
Brightness: 1000 nits
Contrast ratio: 1200:1
Viewing angles: 89/89/89/89
Backlight: LED, approx. 50,000 hours lifetime

Touch Panel
Touch options: PCAP (projected capacitive), Infrared
Supported drivers: Windows, Linux, Android, Mac, Raspberry Pi

Default Waterproof I/O
Video input: 1 × HDMI
Audio: optional
Touch connector: 1 × USB (optional)
Power connector: AC 110–240V input (DC 9–36V optional)

Operation
Operating temperature: 0 ~ 50°C
Humidity: 10–90% RH
Continuous use: 24/7/365 supported

Power
Power input: AC 110–240V (DC 9–36V optional)
Power consumption: 90W

ORDER INFORMATION (examples)
32" 1000 nits Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing — ITD32CMT2IPHBA1
32" 1000 nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD32CMT5IPHBA1
32" 1000 nits Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing — ITD32CMT2IPHBS1
32" 1000 nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD32CMT5IPHBS1
32" 1000 nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD32CMG1IPHBA1
32" 1000 nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD32CMG1IPHBS1

Technical specifications

• Model Name: ITD32CMG1IPHBS2
• Screen size: 32" (81.3 cm)
• Active area: 698.4 mm (H) × 392.85 mm (V)
• Aspect ratio: 16:9
• Resolution: 1920 × 1080 (FHD)
• Colors: 16.7M
• Brightness: 1000 nits
• Contrast ratio: 1200:1
• Viewing angles: 89/89/89/89
• Backlight: LED, ~50,000 hours
• Touch options: PCAP, Infrared
• Touch drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video input: 1 × HDMI
• Audio: optional
• Touch connector: 1 × USB (optional)
• Power input: AC 110–240V (DC 9–36V optional)
• Power consumption: 90W
• Operating temperature: 0 ~ 50°C
• Humidity: 10–90% RH
• Use: 24/7/365 supported
• Enclosure: stainless steel or aluminum alloy, corrosion resistant, easy to clean
• Ingress protection: Full IP65/IP66 (IP67 optional)
• Optical bonding: optional (recommended for sunlight readability)
