Ship display ITD21CMG1IPHBA1
for control21.5"touch screen

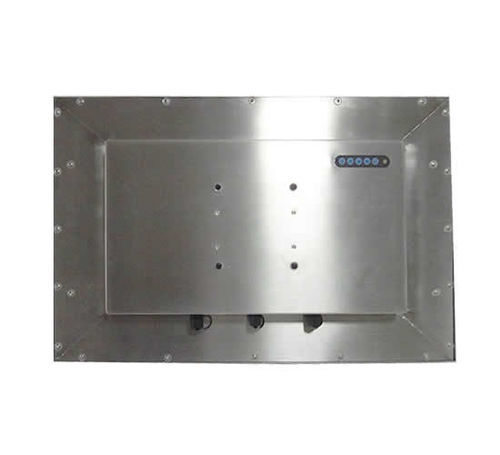

Ship display - ITD21CMG1IPHBA1 - Shenzhen ITD Display Equipment Co., LTD - for control / 21.5" / touch screen

Ship display - ITD21CMG1IPHBA1 - Shenzhen ITD Display Equipment Co., LTD - for control / 21.5" / touch screen - image - 2

Add to favorites

Compare this product

Characteristics

Application domain: for ships
Function: for control
Display size: 21.5"
Other characteristics: touch screen, waterproof

Description

Benefits

Industrial-grade, sealed touchscreen monitors for harsh and semi-outdoor environments
Optional touch technologies: Resistive and PCAP
Ingress protection Full IP65/IP66 with NEMA-equivalent ratings
Housings in steel, stainless steel or aluminum alloy with cooling fins
Fully sealed I/O and connectors to resist dust, water and corrosive agents
High-brightness options from 1000 to 1500 cd/m² for sunlight readability
Long lifecycle designed for continuity across project phases

Overview
ITD full IP65 touchscreen LCD monitors are fully integrated units that combine a high-brightness TFT LCD, touchscreen options and a waterproof, dustproof chassis in stainless steel or aluminum alloy. Optical bonding between the TFT panel and tempered glass/touch panel is available to improve sunlight performance. These models are engineered for demanding semi-outdoor and outdoor applications including kiosks, marine, oil & gas, pharmaceutical and industrial control and monitoring.

Display
Screen Diagonal: 21.5"
Active Screen Size: 476.64(H) × 248.25(V) mm
Aspect Ratio: 16:9
Physical Resolution: 1920 × 1080 (FHD)
Maximum Resolution Supported: 1920 × 1080
Colors: 16.7M
Brightness: 1000 cd/m² (option up to 1500 cd/m²)
Contrast Ratio: 1000:1
Viewing Angles: 85/85/80/80
Backlight: LED, 50,000 hours lifetime

Touch Panel
Touch Options: Resistive, PCAP
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Input / Output
Video Input: 1 × VGA (standard); 1 × HDMI (optional)
Audio: N/A
Touch Connector: 1 × USB (optional)
Power Connector: 1 × DC2.0

Operation
Operating Temperature Range: -10 ~ 60 °C (option -20 ~ 70 °C)
Humidity Range (RH): 10-90%
Continuous Use: Designed for 24/7/365 operation

Power
Power Input: DC 12V
Power Consumption: 40 W

Order Information

21.5" 1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing — ITD21CMT1IPHBA1
21.5" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD21CMT5IPHBA1
21.5" 1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing — ITD21CMT1IPHBS1
21.5" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD21CMT5IPHBS1
21.5" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD21CMG1IPHBA1
21.5" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD21CMG1IPHBS1

Caractéristiques / Spécifications techniques

Brand: ITD
Model Name: ITD21CMG1IPHBA1 (example model in series)
IP Rating: Full IP65/IP66 (IP67 optional)
Screen Size: 21.5 inch (21.5")
Resolution: 1920 × 1080 (FHD)
Brightness: 1000 cd/m² (option up to 1500 cd/m²)
Colors: 16.7M
Backlight Lifetime: LED, 50,000 hours
Touch Options: Resistive, PCAP; drivers for Windows, Linux, Android, Mac, Raspberry Pi
Video Inputs: VGA (standard), HDMI (optional)
Touch Connector: USB (optional)
Power Input: DC 12V; Power Consumption: 40 W
Operating Temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
Humidity Range: 10-90% RH
Designed for continuous 24/7 operation
