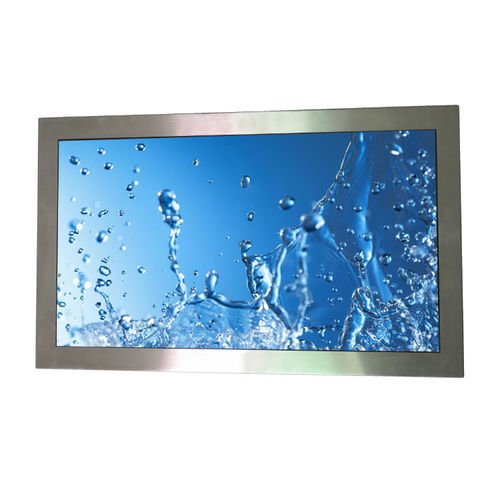

Ship display ITD27CMG1IPHBS2

for control27"touch screen

BENEFITS

• Exceptional quality industrial heavy-duty monitor engineered for harsh environments
• Optional touch solutions: PCAP and infrared
• Rugged ingress protection up to Full IP65/IP66 from all directions (IP67 optional)
• Durable stainless steel or aluminum alloy enclosure with cooling fins
• IP66-sealed I/O connectors protect against particles, water and corrosive agents
• High brightness 1000 nits; optical bonding available for sunlight readability
• Long product lifecycle to support project continuity

OVERVIEW
ITD full IP66 sunlight-readable 27" LCD touchscreen displays are fully integrated units combining a high-brightness TFT LCD, a sealed touch interface and a fully sealed stainless steel or aluminum chassis with waterproof I/O. The enclosure is corrosion-resistant and easy to clean. Optical bonding between the TFT panel and tempered glass/touch panel is available to improve visibility in bright outdoor conditions. These monitors are designed for demanding industrial applications such as outdoor kiosks, beverage, marine, oil & gas, pharmaceutical and tobacco plants for operator control and monitoring in semi-outdoor and outdoor installations.

PRODUCT SPECIFICATIONS (table)
Full IP65/IP66 · High-Brightness Touchscreen Monitor

Model Name: ITD27CMG1IPHBS2
IP Rating: Full IP65/IP66 (IP67 optional)

LCD Panel
Screen Diagonal (Inch/cm): 27"
Active Screen Size (mm): 597.6 (H) × 336.15 (V)
Aspect Ratio: 16:9
Resolution (Physical / Max): 1920 × 1080
Colors: 16.7M
Brightness: 1000 nits
Contrast Ratio: 1000:1
Viewing Angles: 89/89/89/89
Backlight: LED, 50,000 hours lifetime

Touch Panel
Touch Options: PCAP, Infrared
Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Default Waterproof I/O
Video Input: 1 × HDMI
Audio: Optional
Touch Connector: 1 × USB (optional)
Power Connector: AC 110-240V input (DC 9-36V optional)

Operation
Operating Temperature: 0 ~ 50 °C
Humidity: 10-90% RH
24/7/365 Operation: Supported

Power
Power Input: AC 110-240V (DC 9-36V optional)
Power Consumption: 43W

Order Information
27" 1000nits Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing · ITD27CMT2IPHBA1
27" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing · ITD27CMT5IPHBA1
27" 1000nits Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing · ITD27CMT2IPHBS1
27" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing · ITD27CMT5IPHBS1
27" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing · ITD27CMG1IPHBA1
27" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing · ITD27CMG1IPHBS1

SPECIFICATIONS / TECHNICAL DATA

• Series: ITD27 series
• Display size: 27" (597.6 × 336.15 mm active area)
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Colors: 16.7M
• Viewing angles: 89/89/89/89
• Backlight: LED, 50,000 hours lifetime
• Touch: PCAP or Infrared; drivers for Windows, Linux, Android, Mac, Raspberry Pi
• Ingress protection: Full IP65/IP66 (IP67 optional)
• Video input: HDMI
• Power: AC 110-240V (DC 9-36V optional); consumption 43W
• Operating temperature: 0 ~ 50 °C; humidity 10-90% RH
• Designed for continuous 24/7/365 operation
