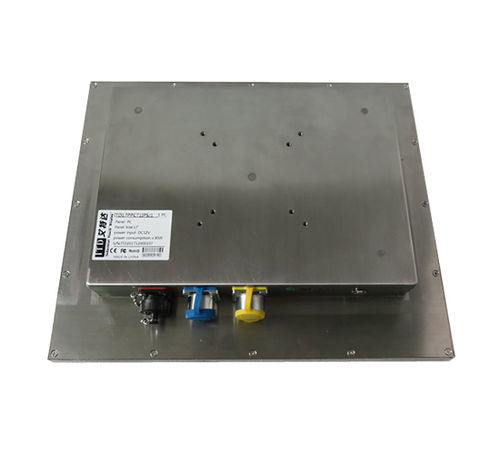

Ship display ITD17CMG1IPHBA1

for control17"touch screen

BENEFITS

• Industrial-grade design for heavy-duty and semi-outdoor/outdoor applications
• Optional resistive and projected capacitive (PCAP) touchscreens
• Ingress protection levels Full IP65/IP66 (IP67 optional)
• Stainless steel or aluminum alloy enclosures with cooling fins
• Fully sealed IP65 I/O connectors to protect against dust, water and corrosive agents
• High-brightness options from 1000 cd/m² up to 1500 nits
• Long product lifecycle to support project continuity

OVERVIEW
ITD full IP65 sunlight-readable 17" touchscreen LCD monitors are fully integrated units combining a high-brightness TFT LCD, sealed touch surface and a corrosion-resistant stainless steel or aluminum alloy chassis with IP65/IP66-rated I/O. Optical bonding between the TFT panel and tempered glass/touch panel is available to improve readability in direct sunlight. These units are designed for demanding industrial and semi-outdoor/outdoor applications including outdoor kiosks, beverage, marine, oil & gas, pharmaceutical and tobacco industries for operator control and monitoring.

LCD PANEL

• Screen diagonal: 17" (43.18 cm)
• Active area: 337.920 mm × 270.336 mm
• Aspect ratio: 4:3
• Native resolution: 1280 × 1024
• Maximum supported resolution: up to 1920 × 1080
• Colors: 16.7M
• Brightness: 1000 cd/m² (optional up to 1500 nits)
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80 (L/R/U/D)
• Backlight: LED, ~50,000 hours

TOUCH PANEL

• Touch options: Resistive, PCAP (projected capacitive)
• Touch drivers: Windows, Linux, Android, Mac, Raspberry Pi

INPUT / OUTPUT

• Video input: 1 × VGA (standard)
• HDMI: 1 × HDMI (optional)
• Audio: N/A
• Touch connector: 1 × USB (optional)
• Power connector: 1 × DC2.0

OPERATION

• Operating temperature: -10 ~ 60 °C (optionally -20 ~ 70 °C)
• Humidity: 10–90% RH
• Designed for 24/7/365 operation

POWER

• Power input: DC 12V
• Typical power consumption: 30 W

ORDER INFORMATION
Example configurations / part numbers: ITD17CMT1IPHBA1; ITD17CMT5IPHBA1; ITD17CMT1IPHBS1; ITD17CMT5IPHBS1; ITD17CMG1IPHBA1; ITD17CMG1IPHBS1

TECHNICAL SPECIFICATIONS

• Brand: ITD
• Product designation: 17-inch high-brightness full IP65/IP66 touchscreen LCD monitor
• IP rating: Full IP65/IP66 (IP67 optional)
• Screen: 17" 4:3 native 1280×1024, up to 1920×1080
• Brightness: 1000 cd/m² (optional up to 1500 nits)
• Backlight: LED, ~50,000 hours
• Colors: 16.7M
• Contrast: 1000:1
• Viewing angles: 85/85/80/80
• Touch: Resistive or PCAP; drivers for Windows, Linux, Android, Mac, Raspberry Pi
• Video inputs: VGA (standard), HDMI (optional)
• Touch connectivity: USB (optional)
• Power: DC 12V via DC2.0 connector; typical consumption 30 W
• Operating temperature: -10 ~ 60 °C (option -20 ~ 70 °C)
• Operating humidity: 10–90% RH
