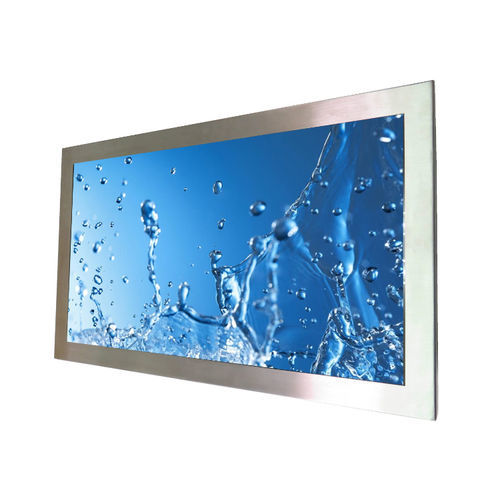

Ship display ITD55CMG1IPHBS2

for controlvisualizationtouch screen

BENEFITS

• Sunlight‑readable 55-inch TFT LCD at 1000 nits for outdoor and semi‑outdoor installations
• Fully sealed Full IP65/IP66 stainless steel enclosure for corrosion and ingress protection
• Optional PCAP and infrared touchscreens with broad driver support (Windows, Linux, Android, Mac, Raspberry Pi)
• Full IP66 sealed I/O connectors protect against water, dust and corrosive agents
• LED backlight with 50,000 hours lifetime and power options for continuous 24/7 operation
• Engineered for demanding sectors: outdoor kiosks, marine, oil & gas, beverage, pharmaceutical, tobacco

OVERVIEW
ITD full IP66 sunlight‑readable 55-inch touchscreen displays combine a high‑brightness 1000 nits TFT panel, optional optical bonding, and a fully sealed stainless steel or aluminum alloy chassis. The IP65/IP66 rated design, sealed I/O and corrosion‑resistant enclosure ensure reliable operation in harsh outdoor and industrial environments. Optional PCAP or infrared touch solutions provide flexible HMI choices for operator control and monitoring in semi‑outdoor and outdoor applications.

TECHNICAL SPECIFICATIONS

• Model Name: ITD55CMG1IPHBS2
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Diagonal: 55-inch (1213.6 × 684.4 mm active)
• Aspect Ratio: 16:9
• Resolution: 1920 × 1080 (Full HD)
• Colors: 16.7M
• Brightness: 1000 nits
• Contrast Ratio: 1400:1
• Viewing Angles: 89/89/89/89
• Backlight: LED, 50000 hours lifetime
• Touch Options: PCAP, Infrared
• Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video Input: 1 × HDMI
• Audio: Optional
• Touch Connector: 1 × USB (optional)
• Power Input: AC 110-240V (DC 9-36V optional)
• Operating Temperature: 0 ~ 50 °C
• Humidity: 10-90% RH
• 24/7/365 Operation: Supported
• Power Consumption: 260 W
• Order / Example Variants: ITD55CMT2IPHBA1 (55-inch 1000 nits, IR Touch, Aluminum); ITD55CMT5IPHBA1 (55-inch 1000 nits, PCAP Touch, Aluminum); ITD55CMT2IPHBS1 (55-inch 1000 nits, IR Touch, Stainless Steel); ITD55CMT5IPHBS1 (55-inch 1000 nits, PCAP Touch, Stainless Steel); ITD55CMG1IPHBA1 (55-inch 1000 nits, Tempered Glass, Aluminum); ITD55CMG1IPHBS1 (55-inch 1000 nits, Tempered Glass, Stainless Steel)
