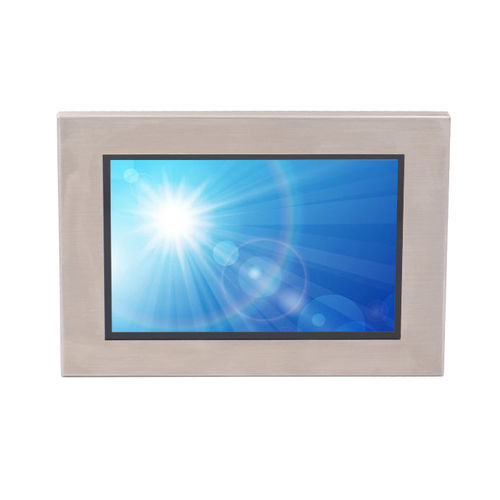

Marine display ITD12CMG1IPHBS2W

for controlvisualization12"

BENEFITS

• Industrial-grade full IP66 sealed 12.1-inch LCD monitor for harsh environments
• Optional touch technologies: resistive, PCAP and infrared
• Stainless steel or aluminum housings with cooling fin and easy-clean exterior
• Full IP66 I/O and connector sealing against dust, water and corrosive agents
• High-brightness options (1000 to 1500 nits) for sunlight-readable applications
• Designed for continuous 24/7 operation and long product lifecycle

OVERVIEW
ITD 12.1-inch full IP66 sunlight-readable LCD touchscreen displays are fully integrated units combining a high-brightness TFT panel, optional touch overlay, and a fully sealed stainless steel or aluminum chassis with IP65/IP66 ingress protection. Optical bonding between the TFT and tempered glass or touch panel is available to reduce reflections and improve visibility in high ambient light. These monitors are built for demanding industrial applications such as outdoor kiosks, marine instrumentation, oil & gas, pharmaceutical and food & beverage production where reliable operator control and monitoring are required.

KEY FEATURES (from product table)
Model Name: ITD12CMG1IPHBS2W
IP Rating: Full IP65/IP66 (IP67 optional)

LCD Panel
Screen Diagonal: 12.1-inch (16:10)
Active Area: 261.12 x 163.2 mm
Resolution (physical): 1280 x 800
Max Supported Resolution: 1920 x 1200
Colors: 16.2M
Brightness: 1000 nits (options up to 1500 nits)
Contrast Ratio: 800:1
Viewing Angles: 80/80/65/80
Backlight: LED, 50,000 hours lifetime

Touch Panel
Touch Options: Resistive, PCAP, Infrared
Supported Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Default Waterproof I/O
Video Input: 1× HDMI
Audio: optional
Touch Connector: 1× USB (optional)
Power Connector: 1× DC 12V

Operation
Operating Temperature: -10 to 60°C (optional -20 to 70°C)
Humidity: 10-90% RH
24/7 Operation: supported

Power
Power Input: DC 12V (DC 9-36V optional)
Power Consumption: 15 W

Order Information

• 12.1-inch 16:10 1000nits Full IP66 LCD Monitor with Resistive Touch, Aluminum Housing — ITD12CMT1IPHBA1W
• 12.1-inch 16:10 1000nits Full IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD12CMT5IPHBA1W
• 12.1-inch 16:10 1000nits Full IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing — ITD12CMT1IPHBS1W
• 12.1-inch 16:10 1000nits Full IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD12CMT5IPHBS1W
• 12.1-inch 16:10 1000nits Full IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD12CMG1IPHBA1W
• 12.1-inch 16:10 1000nits Full IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD12CMG1IPHBS1W

Technical specifications

• Brand: ITD
• Model: ITD12CMG1IPHBS2W
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Size: 12.1-inch (16:10)
• Active Area: 261.12 x 163.2 mm
• Resolution: 1280 x 800 (physical)
• Max Supported Resolution: 1920 x 1200
• Colors: 16.2M
• Brightness: 1000 nits (up to 1500 nits optional)
• Contrast Ratio: 800:1
• Viewing Angles: 80/80/65/80
• Backlight: LED, 50,000 h
• Touch Options: Resistive, PCAP, Infrared
• Touch Interface: USB (optional)
• Video Input: HDMI ×1
• Audio: optional
• Power Input: DC 12V (DC 9-36V optional)
• Power Consumption: 15 W
• Operating Temperature: -10 to 60°C (optional -20 to 70°C)
• Humidity: 10-90% RH
• 24/7 Operation: supported
