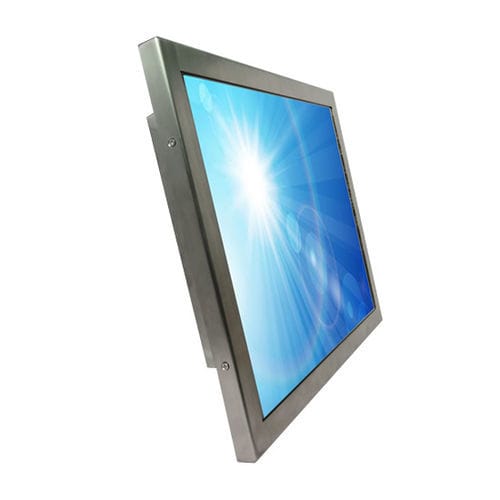

Marine display ITD15CMG1IPHBA1

multi-function15"touch screen

BENEFITS

• Industrial-grade, fully sealed touchscreen display designed for harsh and semi-outdoor environments
• Available touch options: resistive and projected capacitive (PCAP)
• Full ingress protection with IP65/IP66 (IP67 optional) for front and I/O
• Durable stainless steel or aluminum alloy enclosure with cooling fins and easy-to-clean surfaces
• Optional optical bonding and high-brightness panels (1000–1500 cd/m²) for sunlight readability
• Support for continuous 24/7 operation and extended temperature ranges

OVERVIEW
The ITD15CMG1IPHBA1 is a fully integrated 15-inch sunlight-readable TFT LCD touchscreen monitor engineered for industrial and outdoor applications. It combines a high-brightness display, sealed chassis and IP-rated I/O to protect against dust, water and corrosive agents. The unit is suitable for kiosks, marine consoles, beverage and pharmaceutical production lines, oil & gas terminals and other environments requiring robust operator interfaces. Optional optical bonding between the TFT and tempered glass/touch panel improves contrast and reduces reflections in direct sunlight.

Product Summary

• Model Name: ITD15CMG1IPHBA1
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Diagonal: 15"
• Display Active Size: 304.128(H) × 228.096(V) mm
• Aspect Ratio: 4:3
• Physical Resolution: 1024 × 768
• Max Resolution Supported: 1920 × 1080
• Colors: 16.7M
• Brightness: 1000 cd/m² (options up to 1500 cd/m²)
• Contrast Ratio: 700:1
• Viewing Angles: 85/85/80/80
• Backlight: LED, 50,000 hours
• Touch Options: Resistive, PCAP
• Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video Input: 1 × VGA, 1 × HDMI (optional)
• Touch Connector: 1 × USB (optional)
• Power Input: DC 12V via DC2.0 connector
• Power Consumption: 30 W
• Operating Temp: -10 ~ 60 °C (optionally -20 ~ 70 °C)
• Humidity Range: 10–90% RH
• 24/7/365 Operation: Supported

Technical specifications

• Model Name: ITD15CMG1IPHBA1
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Diagonal: 15"
• Display Active Screen Size: 304.128(H) × 228.096(V) mm
• Aspect Ratio: 4:3
• Physical Resolution: 1024 × 768
• Maximum Resolution Supported: 1920 × 1080
• Colors: 16.7M
• Brightness: 1000 cd/m²
• Contrast Ratio: 700:1
• View Angles: 85/85/80/80
• Backlight / Backlight Lifetime: LED Backlight with 50000 Hours' Lifetime
• Touch Options: Resistive, PCAP
• Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video Input: VGA (1×), HDMI (1×, optional)
• Audio: N/A
• Touch Connector: USB (1×, optional)
• Power Connector: DC2.0 (1×)
• Power Input: DC 12V
• Power Consumption: 30 W
• Operating Temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
• Humidity Range: 10-90%
• 24/7/365 Operation: Supported
