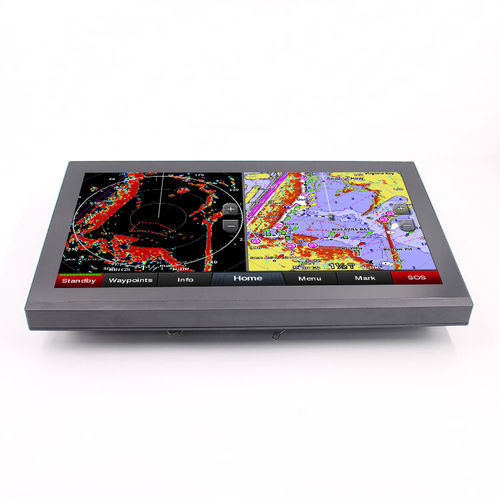

Marine display ITD15CMT5HBIPR1

navigation15.6"touch screen

Benefits

• Clear visibility in direct sunlight with 1500 nits brightness for reliable fishfinder and navigation display readability.
• Marine-ready construction: IP67 waterproofing and shock resistance up to 20G for operation in rough seas and high-vibration environments.
• Responsive 10-point PCAP touchscreen works with wet or gloved hands for safe, easy operation on deck.
• Compact 15.6" format balances viewing area and installation flexibility across small to larger vessels.
• Seamless integration with common fishfinder and marine electronics via HDMI and plug-and-play touch drivers.
• Corrosion-resistant, fan-less aluminum enclosure with heatsink and easy-to-clean flat surface for low-maintenance marine use.

Overview
ITD's 15.6" sunlight-readable touch monitor ITD15CMT5HBIPR1 is engineered for fishing and marine navigation. The high-brightness Full HD panel provides clear, glare-reduced viewing even in direct sunlight and supports polarized sunglasses. Built to withstand maritime conditions, the unit is IP67-rated and shock-resistant to 20G. The optically bonded PCAP touchscreen delivers accurate 10-point touch response with anti-glare and anti-UV coatings and remains usable with wet or gloved hands. With wide operating temperature and humidity ranges and 24/7 capability, the monitor is suited to continuous marine operations and easy integration with fishfinders and onboard electronics.

IP67 Rugged Sunlight Readable Touch Monitor - Key Table
Model Name : ITD15CMT5HBIPR1
IP Rating : IP67
Screen Diagonal (Inch/cm) : 15.6"
Aspect Ratio : 16 : 9
Display Active Screen Size (mm) : 344.16(W)×193.59(H) mm
Physical Resolution : 1920×1080
Pixel Pitch : 0.17925×0.17925 mm
Response Time : 14/11 ms
Colors : 16.7M
Brightness (cd/m2) : 1500 nits
Contrast Ratio : 800:1
View Angles : 89/89/89/89
Backlight/Backlight Lifetime : LED Backlight with 50000 Hours' Lifetime
Touch Options : Projected Capacitive Touch Screen (Anti-Glare & Anti-UV, Optically Bonded)
Touch Drivers : Plug and Play for Windows, Linux, Mac, Android, Raspberry Pi
HDMI Port : 1 × HDMI input
Touch Port : 1 × Micro USB
Power Port : 1 × DC9~36V
Operating Temperature Range : -20~70°C
Humidity Range (RH) : 10-90% Non-Condensing
24/7/365 Use : Supported
Power Indicator : LED Light
Power Consumption : 35W
Power Input : DC9~36V input
Others : Readable with polarized sunglasses; fan-less aluminum alloy enclosure with heatsink and easy-to-clean flat surface; 10-point PCAP touch with anti-glare and anti-UV coating and touch on/off control; U-shaped mount and customer's logo printing optional.

Technical specifications

• Model Name: ITD15CMT5HBIPR1
• IP Rating: IP67
• Screen Size: 15.6" (344.16 × 193.59 mm active area)
• Resolution: 1920×1080 (Full HD)
• Aspect Ratio: 16:9
• Brightness: 1500 nits (sunlight readable)
• Contrast Ratio: 800:1
• View Angles: 89/89/89/89
• Backlight: LED, 50000 hours lifetime
• Colors: 16.7M
• Pixel Pitch: 0.17925 × 0.17925 mm
• Response Time: 14/11 ms
• Touch Panel: Projected Capacitive (PCAP), anti-glare & anti-UV, optically bonded, 10-point touch
• Touch Compatibility: Plug and Play for Windows, Linux, Mac, Android, Raspberry Pi
• Interfaces: 1× HDMI input (M12 waterproof option), 1× Micro USB touch port, 1× DC9~36V power input
• Power Consumption: 35W
• Operating Temp: -20 to 70°C
• Humidity: 10-90% RH non-condensing
• Shock Resistance: up to 20G (designed for marine use)
• Additional Features: Readable with polarized sunglasses; fan-less aluminum alloy enclosure with heatsink; U-shaped mount option; custom logo printing option
