Boat display ITD21CMT5HBIPR1

marinefor controlnavigation

BENEFITS

• 21.5" High-brightness display (1500 nits) for clear visibility in direct sunlight, suitable for open-deck marine use.
• Rugged construction with shock resistance up to 20G and fan-less aluminum-alloy housing for operation in rough sea conditions.
• IP67 waterproof enclosure protects against water ingress, rain and spray for reliable performance on vessels.
• Projected capacitive multi-touch (10-point PCAP) with anti-glare and anti-UV coating, responsive with wet or gloved hands.
• Wide viewing angles (89/89/89/89) allow clear viewing from multiple positions on board.
• Multiple I/O including HDMI and M12 waterproof interfaces for integration with fishfinders, sonar, GPS and marine electronics.
• Energy-efficient design with DC9~36V input and 45W power consumption for extended onboard use.
• Customizable UI options and optional U-shaped mount and customer logo printing for vessel integration.

OVERVIEW

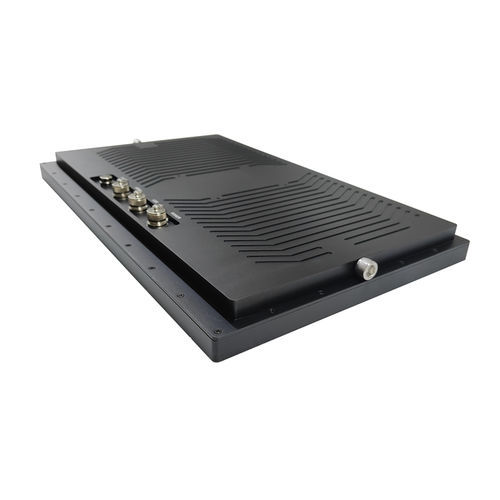

ITD's 21.5" rugged sunlight-readable touch monitor ITD21CMT5HBIPR1 is engineered for marine and fishing applications. The Full HD 1920×1080 display with 1500 nits brightness and optical bonding delivers clear underwater and navigation imagery even in bright conditions. With IP67 protection, wide temperature range and 24/7 operation support, the monitor integrates with sonar and navigation systems to provide reliable imaging and touch control on recreational and commercial vessels.

IP67 Rugged Sunlight Readable Touch Monitor - Key Data
Model Name: ITD21CMT5HBIPR1
IP Rating: IP67
Screen Diagonal (Inch/cm): 21.5" / 54.61 cm
Aspect Ratio: 16:9
Active Screen Size (mm): 476.64 × 268.11 mm
Resolution: 1920 × 1080
Brightness: 1500 nits
Contrast Ratio: 1000:1
Viewing Angles: 89/89/89/89
Backlight: LED, lifetime 50000 hours
Touch: Projected Capacitive (10-point), anti-glare & anti-UV, optically bonded
Touch Drivers: Plug and Play for Windows, Linux, Mac, Android, Raspberry Pi
Default Waterproof Interfaces: 1×HDMI input (M12), 1×Micro USB (touch), Power DC9~36V
Operating Temp: -20 ~ 70°C
Humidity: 10-90% RH non-condensing
24/7 Use: Supported
Power Consumption: 45W
Additional: Readable with polarized sunglasses; flat easy-clean front; touch on/off control; optional U-shaped mount & customer LOGO printing

Technical Specifications

• Model: ITD21CMT5HBIPR1
• Ingress Protection: IP67
• Screen Size: 21.5" (476.64 × 268.11 mm)
• Resolution: 1920 × 1080
• Brightness: 1500 nits
• Contrast: 1000:1
• Viewing Angles: 89/89/89/89
• Backlight: LED, 50000 hours lifetime
• Touch Type: Projected Capacitive (PCAP), anti-glare & anti-UV, optically bonded, 10-point
• Main Interfaces: 1×HDMI input (M12), 1×Micro USB (touch), Power DC9~36V
• Power Consumption: 45W
• Operating Temperature: -20 to 70°C
• Humidity: 10-90% non-condensing
• Use: 24/7/365 supported
