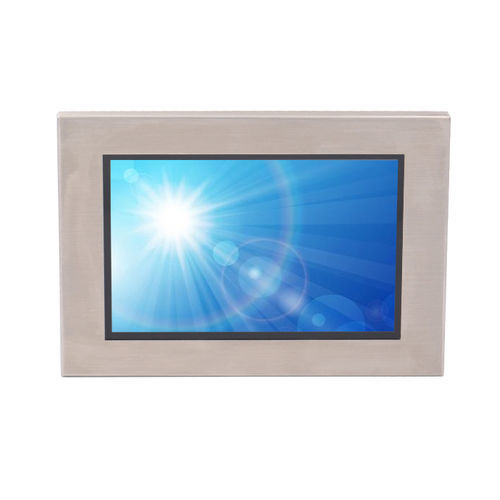

Ship display ITD13CMG1IPHBS2

multi-function13.3"touch screen

Benefits

• Rugged full-sealed stainless steel housing with IP65/IP66 ingress protection (IP67 optional)
• High-brightness display (1000 nits standard, up to 1500 nits optional) for outdoor and semi-outdoor visibility
• Multiple touch options: Resistive, PCAP, Infrared for varied operator interfaces
• Wide operating temperature range and 24/7 reliability for industrial deployments
• Optional optical bonding and waterproof I/O for harsh environments

Overview
ITD 13.3-inch full IP65/IP66 sunlight-readable LCD touchscreen combines a high-brightness TFT panel, fully sealed stainless steel or aluminum alloy chassis and IP-rated waterproof I/O. Designed for demanding industrial applications such as outdoor kiosks, marine, oil & gas, beverage and pharmaceutical environments, the unit supports continuous 24/7 operation and resists dust, water and corrosive agents. Optional optical bonding between the TFT and tempered glass/touch panel improves legibility in direct sunlight.

Key Product Features (table data)
Full IP65/IP66; High Brightness Touchscreen Monitor

Model Name
ITD13CMG1IPHBS2

IP Rating
Full IP65/IP66 (IP67 optional)

LCD Panel
Screen Diagonal: 13.3"
Active Area: 293.472(H) × 165.078(V) mm
Aspect Ratio: 16:9
Resolution: 1920 × 1080
Colors: 16.2M
Brightness: 1000 nits (optional up to 1500 nits)
Contrast Ratio: 800:1
Viewing Angles: 85/85/85/85
Backlight: LED, 50000 hours

Touch Panel
Touch Options: Resistive, PCAP, Infrared
Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Default Waterproof I/O
Video Input: 1 × HDMI
Audio: Optional
Touch Connector: 1 × USB (optional)
Power Connector: 1 × DC 12V (DC9-36V optional)

Operation
Operating Temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
Humidity Range: 10-90% RH
24/7 Use: Supported

Power
Power Input: DC 12V
Power Consumption: 20W

Order Information
13.3" 1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing — ITD13CMT1IPHBA1
13.3" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD13CMT5IPHBA1
13.3" 1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing — ITD13CMT1IPHBS1
13.3" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD13CMT5IPHBS1
13.3" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD13CMG1IPHBA1
13.3" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD13CMG1IPHBS1

Technical Specifications

• Brand: ITD
• Model: ITD13CMG1IPHBS2
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Size: 13.3"
• Active Area: 293.472 × 165.078 mm
• Resolution: 1920 × 1080
• Aspect Ratio: 16:9
• Brightness: 1000 nits (optional up to 1500 nits)
• Colors: 16.2M
• Contrast Ratio: 800:1
• Viewing Angles: 85/85/85/85
• Backlight: LED, 50000 hours
• Touch Options: Resistive, PCAP, Infrared
• Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video Input: HDMI
• Audio: Optional
• Touch Connector: USB (optional)
• Power Input: DC 12V (DC9-36V optional)
• Power Consumption: 20W
• Operating Temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
• Humidity: 10-90% RH
• 24/7 Use: Supported
