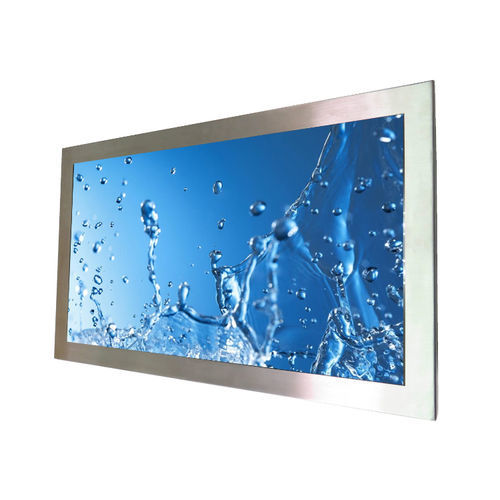

Ship display ITD49CMG1IPHBS2

videofor controltouch screen

BENEFITS

• Full IP65/IP66 sealed protection against dust, water and corrosive agents for harsh industrial environments
• High brightness 1000 nits for outdoor and semi-outdoor readability
• Stainless steel or aluminum alloy sealed chassis with cooling fins for extended durability
• Optional PCAP or infrared touch technologies with broad OS support
• Waterproof I/O and connectors to maintain continuous operation in demanding applications
• Designed for 24/7 operation and long product lifecycle for project continuity

OVERVIEW
ITD full IP65/IP66 49" sunlight-readable LCD touchscreen monitors are fully integrated, rugged units that combine a high-brightness TFT LCD, sealed stainless steel or aluminum alloy enclosure and waterproof I/O. Optical bonding between the TFT panel and tempered glass/touch panel is available to reduce reflection and improve visibility in direct sunlight. These monitors are built for industrial applications requiring reliable outdoor or semi-outdoor operator control and monitoring, including kiosks, marine, oil & gas, beverage, pharmaceutical and tobacco sectors.

KEY FEATURES / TABLE
Full IP65/IP66 High Brightness Touchscreen Monitor

Model Name: ITD49CMG1IPHBS2

IP Rating: Full IP65/IP66 (IP67 optional)

LCD Panel
Screen Diagonal (Inch/cm): 49"
Display Active Screen Size (mm): 1073.78(H) × 604(V)
Aspect Ratio: 16:9
Physical Resolution: 1920 × 1080
Maximum Resolution Supported: 1920 × 1080
Colors: 16.7M
Brightness: 1000 nits
Contrast Ratio: 1200:1
View Angles: 89/89/89/89
Backlight/Backlight Lifetime: LED Backlight with 50000 Hours' Lifetime

Touch Panel
Touch Options: PCAP, Infrared
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Default Waterproof I/O
Video Input: 1 × HDMI
Audio: Optional
Touch Connector: 1 × USB (Optional)
Power Connector: 1 × AC 110-240V input (DC9-36V optional)

Operation
Operating Temperature Range: 0 ~ 50 °C
Humidity Range (RH): 10 - 90%
24/7/365 Use: Supported

Power
Power Indicator: N/A
Power Input: AC 110-240V
Power Consumption: 180W

Order Information (example variants)
49" 1000nits Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing – ITD49CMT2IPHBA1
49" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing – ITD49CMT5IPHBA1
49" 1000nits Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing – ITD49CMT2IPHBS1
49" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing – ITD49CMT5IPHBS1
49" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing – ITD49CMG1IPHBA1
49" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing – ITD49CMG1IPHBS1

Technical specifications

• Model Name: ITD49CMG1IPHBS2
• IP Rating: Full IP65/IP66 (IP67 optional)
• Screen Size: 49" (1073.78 mm × 604 mm active)
• Aspect Ratio: 16:9
• Resolution: 1920 × 1080
• Colors: 16.7M
• Brightness: 1000 nits
• Contrast Ratio: 1200:1
• View Angles: 89/89/89/89
• Backlight: LED, 50000 hours lifetime
• Touch Options: PCAP, Infrared
• Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
• Video Input: 1 × HDMI
• Audio: Optional
• Touch Connector: 1 × USB (optional)
• Power Input: AC 110-240V (DC9-36V optional)
• Power Consumption: 180W
• Operating Temperature: 0 ~ 50 °C
• Humidity Range: 10 - 90% RH
• 24/7/365 Operation: Supported
