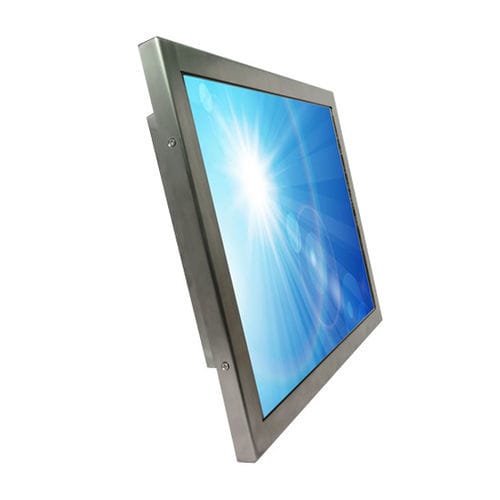

Marine display ITD10CMG1IPHBA1

for shipsfor controlmulti-function

BENEFITS

• Industrial-grade, sunlight-readable 12.1" touchscreen monitor engineered for harsh environments
• Available touch technologies: Resistive and PCAP
• Full ingress protection: IP65/IP66 (NEMA 4X/4 options) for dust and water resistance
• Robust enclosures in stainless steel, aluminum alloy or painted steel with cooling fins
• IP65-sealed I/O connectors to protect against particles, water and corrosive agents
• High-brightness options from 1000 cd/m² up to 1500 cd/m²
• Long production lifecycle to support project continuity

OVERVIEW
ITD full IP65 sunlight-readable 12.1" LCD touchscreen monitors are fully integrated units combining a high-brightness TFT LCD, touchscreen, and a waterproof, dustproof sealed stainless steel or aluminum alloy chassis with IP65/IP66 ingress protection. The enclosure is corrosion-resistant and easy to clean. Optional optical bonding between the TFT panel and tempered glass or touch panel improves visibility in direct sunlight. These units are designed for demanding industrial applications such as outdoor kiosks, marine, oil & gas, pharmaceutical and process industries requiring reliable operator control and monitoring in semi-outdoor and outdoor settings.

LCD Panel
Screen Diagonal (Inch/cm): 12.1"
Display Active Screen Size (mm): 246.0 (H) × 184.5 (V)
Aspect Ratio: 4:3
Physical Resolution: 800 × 600 (1024 × 768 optional)
Maximum Resolution Supported: 1920 × 1080
Colors: 16.7M
Brightness (cd/m2): 1000 cd/m² (higher options up to 1500 nits)
Contrast Ratio: 600:1
View Angles: 80/80/70/60
Backlight / Backlight Lifetime: LED backlight, ~50,000 hours

Touch Panel
Touch Options: Resistive, PCAP
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Input / Output
Video Input: 1 × VGA (standard); 1 × HDMI (optional)
Audio: N/A
Touch Connector: 1 × USB (optional)
Power Connector: 1 × DC2.0

Operation
Operating Temperature Range: -10 ~ 60 °C (optional -20 ~ 70 °C)
Humidity Range (RH): 10 - 90%
24/7/365 Use: Supported

Power
Power Input: DC 12V
Power Consumption: 18 W

Order Information (examples)
12.1" 1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing — ITD12CMT1IPHBA1
12.1" 1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD12CMT5IPHBA1
12.1" 1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD12CMG1IPHBA1
Stainless steel housing variants also available (part numbers shown for reference)

Technical specifications

• Brand: ITD
• Model family: 12.1" Full IP65/IP66 Touchscreen LCD Monitor
• Screen size: 12.1 inch
• Active area: 246.0 × 184.5 mm
• Native resolution: 800 × 600 (1024 × 768 optional)
• Max supported resolution: 1920 × 1080
• Brightness: 1000 cd/m² (high-bright options available up to 1500 nits)
• Colors: 16.7 million
• Contrast ratio: 600:1
• Viewing angles: 80/80/70/60
• Backlight: LED, ~50,000 hours lifetime
• Touch technologies: Resistive or PCAP
• Touch interface: USB (optional)
• Video inputs: VGA standard, HDMI optional
• Power input: DC 12V (connector DC2.0)
• Power consumption: 18 W
• Operating temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
• Operating humidity: 10 - 90% RH
• Ingress protection: Full IP65/IP66 (IP67 optional)
