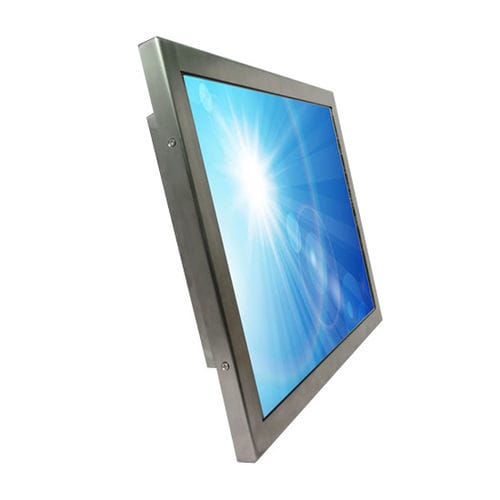

Marine display ITD19CMG1IPHBA1

for control19"touch screen

Key benefits

• Fully sealed Full IP65/IP66 construction for protection against dust, water and corrosive agents
• High brightness option (1000 cd/m²) for outdoor and high-ambient-light environments
• Optional touch technologies: Resistive or PCAP with wide driver support
• Rugged enclosures: stainless steel or aluminum alloy, easy-to-clean
• Optional optical bonding and tempered glass for improved sunlight readability and durability
• Designed for continuous 24/7 industrial operation

Overview
The ITD19CMG1IPHBA1 is a 19" industrial-grade touchscreen LCD monitor engineered for demanding indoor, semi-outdoor and outdoor applications. It integrates a high-brightness TFT panel, sealed IP65/IP66 I/O, and a corrosion-resistant aluminum housing with tempered glass. Optional optical bonding reduces reflection and improves contrast in direct sunlight. Typical applications include outdoor kiosks, marine control stations, beverage and food processing lines, oil & gas operator panels, and pharmaceutical or tobacco production environments where dust and moisture resistance are required.

Product details
Model Name: ITD19CMG1IPHBA1
IP Rating: Full IP65/IP66 (IP67 optional)

LCD Panel

• Screen diagonal: 19"
• Active area: 376.32 × 301.06 mm
• Aspect ratio: 4:3
• Native resolution: 1280 × 1024 (max supported 1920 × 1080)
• Colors: 16.7M
• Brightness: 1000 cd/m² (1000 nits)
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Backlight: LED, 50,000 hours lifetime

Touch Panel

• Options: Resistive or PCAP
• Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

• Video: VGA standard, HDMI optional
• Touch connector: USB (optional)
• Power connector: DC2.0 (DC 12V)

Operation

• Operating temperature: -10 ~ 60°C (optional -20 ~ 70°C)
• Humidity: 10–90% RH
• Designed for continuous 24/7 operation

Power

• Power input: DC 12V via DC2.0 connector
• Typical consumption: 35 W

Order information

• 19" 1000 nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing — ITD19CMG1IPHBA1
• 19" 1000 nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing — ITD19CMG1IPHBS1
• 19" 1000 nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing — ITD19CMT1IPHBA1
• 19" 1000 nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing — ITD19CMT5IPHBA1
• 19" 1000 nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing — ITD19CMT1IPHBS1
• 19" 1000 nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing — ITD19CMT5IPHBS1

Technical specifications

• Brand: ITD
• Model / SKU: ITD19CMG1IPHBA1
• IP rating: Full IP65/IP66 (IP67 optional)
• Screen size: 19" (active area 376.32 × 301.06 mm)
• Resolution: 1280 × 1024 native (max 1920 × 1080)
• Brightness: 1000 cd/m²
• Colors: 16.7M
• Contrast ratio: 1000:1
• Touch: Resistive or PCAP
• Video inputs: VGA (standard), HDMI (optional)
• Power: DC 12V, 35 W typical
• Operating temp: -10 ~ 60°C (optional -20 ~ 70°C)
• Humidity: 10–90% RH
• Designed for 24/7 industrial use
