Epoxy resin WS105206A

for fabric impregnationfor application on woodhigh-performance

Short description

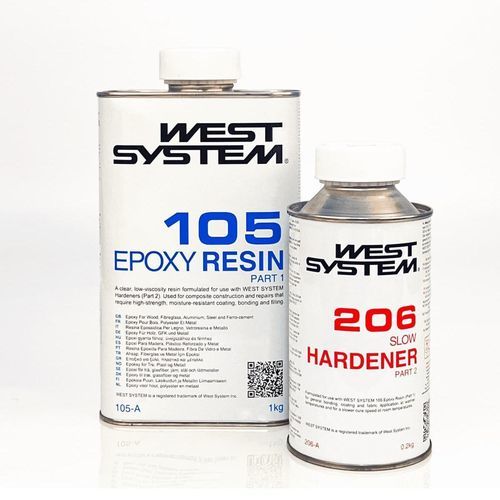

WEST SYSTEM slow epoxy kit 105/206A, total 1.2 kg (1 kg resin 105 + 200 g hardener 206). Low-viscosity epoxy system designed for extended working time under suitable conditions. Packaging: resin can 1 kg, hardener can 200 g. Pump model WS301-A compatible, sold separately.

This pack contains

• Epoxy resin base 105 (1 x 1 kg)
• Slow hardener 206 (1 x 200 g, matched to 105-A conditioning)

Product overview
WEST SYSTEM 105/206A is a two-component epoxy system widely used in marine and composite applications. The 105 resin is a clear, light-yellow, low-viscosity epoxy suitable for impregnating wood fibers, fiberglass and other reinforcements. Hardener 206 is a slow-curing, low-viscosity curing agent that produces a rigid, high-strength, moisture-resistant solid with excellent bonding and coating performance; it offers extended open time for complex layups and repairs.

Usage, dosing and mixing

• Pot life at 25°C: 20–30 minutes.
• Initial cure to handling strength at 21°C: 9–12 hours.
• Cure to full mechanical strength at 21°C: 5–7 days.
• Minimum recommended working temperature: 16°C.
• Dosing: use matching mini-pumps for accurate proportions (one resin pump stroke = one hardener pump stroke with Model A pumps).
• Mixing: stir thoroughly for at least two minutes (longer at low temperatures), scraping pot sides and bottom during mixing.
• Note: Hardener 206 is not recommended for clear transparent coating applications.

Consumption

• 1 kg mixed (porous surface @25°C): approx. 6.5–7.5 m².
• 1 kg mixed (non-porous surface @25°C): approx. 8.5–9.5 m².

Volume discounts

• 2 units — 4% (you save up to €5.58)
• 3 units — 6% (you save up to €12.55)
• 4 units — 8% (you save up to €22.31)
• 7 units — 10% (you save up to €48.80)

Pack notes

• Ensure resin can size, hardener can size and mini-pump letter (A, B, C or D) match within the same pack.
• Kit supplied without pumps; compatible pump model: WS301-A (sold separately).

Technical specifications

• Brand: WEST SYSTEM
• Reference / SKU: WS105206A
• Model (pack letter): A
• EAN (GTIN-13): 5063369010573
• Total pack weight: 1.2 kg (1.0 kg resin + 0.2 kg hardener)
• Packaging: 1 kg resin can + 200 g hardener can
• Associated pump model: WS301-A (sold separately)
• Pot life (25°C): 20–30 minutes
• Cure to handling (21°C): 9–12 hours
• Full strength (21°C): 5–7 days
• Minimum working temperature: 16°C
• Consumption (1 kg mixed @25°C): porous 6.5–7.5 m²; non-porous 8.5–9.5 m²
• Properties: solvent-free, low viscosity, waterproof, non-shrink, high adhesion
