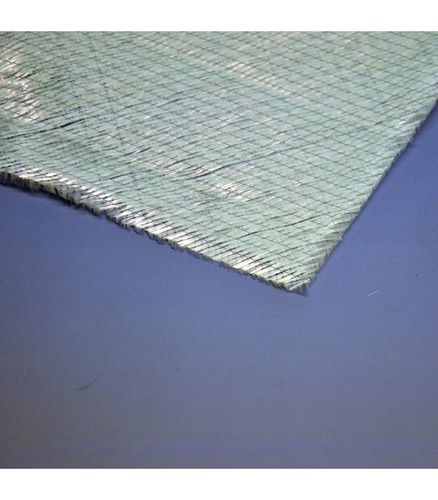

Fiberglass composite fabric WS736-5

biaxialunidirectionalstitched

Short description
Biaxial glass fabric without ripples combining two layers of unidirectional fibers at +/-45° stitched with a lightweight thread. Suitable for hand lay-up to achieve a high fiber-to-resin ratio for composites, repairs and structural reinforcement.

Dimensions and weight

• Dimension: 126.5 x 500 cm (area: 6.35 m²)
• Width: 1265 mm
• Length: 5000 mm
• Fabric weight: 300 g/m²
• Pack weight: 2.5 kg

Product type and brand

• Brand: WEST SYSTEM
• Product: Biaxial glass fabric (+/-45°)
• Reference (SKU): WS736-5
• EAN / GTIN-13: 5063369073615

Usage

• For composite lay-up, repair and reinforcement applications
• Designed for hand wet-out to optimize fiber-to-resin ratio

Technical specifications

• Fiber orientation: +/-45°
• Construction: two layers of unidirectional fibers stitched together with a lightweight thread
• Recommended consumption: 300 g epoxy mix / m²
