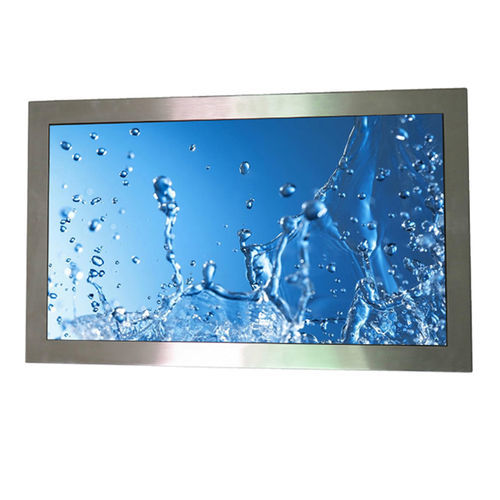

Marine panel PC ITD55PPCG1IP**

embeddedtouch screenbuilt-in

KEY BENEFITS

• Fully sealed industrial panel PC with IP65/IP66-rated enclosure and sealed I/O for use in wet, dusty or corrosive environments
• Multiple CPU platforms (ARM, Intel Celeron, Intel Core) to match performance and power requirements
• Rugged stainless steel or aluminum alloy enclosure compatible with NEMA 4/4X environments
• 55" Full HD LCD with industrial-grade backlight and 24/7 operation capability
• Flexible touchscreen options (PCAP, IR) and configurable connectivity (USB, LAN, COM, HDMI, VGA)
• Modular storage and connectivity: eMMC/MSATA/SATA/M.2, PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth

OVERVIEW

The ITD 55PPCG1IP is a 55-inch industrial touchscreen panel PC designed for demanding HMI, SCADA and control-room applications. The system is built into a fully sealed IP65/IP66 enclosure with sealed I/O ports, providing protection against particles, water jets and corrosive agents. Available in stainless steel or rugged aluminum alloy, the platform supports fanless, low-power configurations and a range of embedded and x86 processors to suit process manufacturing, industrial automation, oil & gas, chemical and marine applications.

MODEL & IP RATING

Model Name: ITD 55PPCG1IP
IP Rating: IP65/IP66 (IP67 optional)

PC SYSTEMS OPTIONS

ARM

• CPU: Quad-Core Cortex-A17 1.8 GHz (RK3288; RK3399/RK3568/RK3588 optional)
• Memory: default 2 GB (4/8 GB optional)
• Storage: default 16 GB (up to 128 GB)
• Video/Ports: 1×HDMI; USB: 2×USB (expandable), 1×USB OTG optional; TF card slot; LAN; Audio out
• OS: Android 7.1/10/11/12 or newer

X86 (Celeron J1900/J4125/J6412)

• CPU: Intel Celeron series (up to J6412)
• Memory: DDR3 dual-channel (platform dependent)
• Storage: MSATA/SATA/M.2 (default 64 GB SSD)
• Video/Ports: VGA, HDMI; USB2.0/3.0; COM ports (configurable); LAN (dual LAN optional)
• OS: Windows 7/10, Linux (Windows 11 on supported SKUs)

Intel Core (i3/i5/i7 optional)

• Higher-performance CPU options for compute-intensive HMI applications
• Support for DDR3/DDR4 SODIMM, multiple storage interfaces and expanded I/O

DEFAULT IP65 CONNECTORS

2×USB 2.0, 1×LAN, AC 110–240V

LCD PANEL

Screen diagonal: 55" (1209.6 × 680.4 mm)
Resolution: 1920 × 1080 (Full HD)
Brightness: 450 nits
Contrast ratio: 1400:1
Colors: 16.7M
Viewing angles: 89/89/89/89
Backlight: LED, 50,000 h lifetime

TOUCH PANEL

Touch options: IR, PCAP
Drivers: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION

Operating temperature: 0–50 °C
Humidity: 10–90% RH (non-condensing)
24/7/365 operation supported

POWER

Power input: AC 110–240V
Power consumption: ~170 W
Power indicator: Green LED

ORDER INFORMATION (selected variants)

• 55" Full IP65/IP66 Panel PC with IR Touch, J1900 — ITD55PPCT1IPJ1
• 55" Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD55PPCT5IPJ1
• 55" Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD55PPCG1IPJ1
• 55" Full IP65/IP66 Panel PC with IR Touch, i3 — ITD55PPCT1IPI3
• 55" Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD55PPCT5IPI3
• 55" Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD55PPCG1IPI3
• 55" Full IP65/IP66 Panel PC with IR Touch, i5 — ITD55PPCT1IPI5
• 55" Full IP65/IP66 Panel PC with PCAP Touch, i5 — ITD55PPCT5IPI5
• 55" Full IP65/IP66 Panel PC with Tempered Glass, i5 — ITD55PPCG1IPI5

TECHNICAL SPECIFICATIONS

• Screen size: 55 inches
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 450 nits
• Contrast ratio: 1400:1
• Colors: 16.7M
• Viewing angles: 89/89/89/89
• Backlight: LED (50,000 h)
• Touch: IR or PCAP (drivers for major OS)
• IP rating: IP65/IP66 (IP67 optional); fully sealed I/O
• Enclosure: stainless steel or aluminum alloy; NEMA ratings available
• Operating temperature: 0–50 °C; humidity 10–90% RH
• Power input: AC 110–240V; consumption ~170 W
• Interfaces: USB, HDMI, VGA, LAN, COM (configurable), Audio Out
• Storage: eMMC/MSATA/SATA/M.2 depending on platform
• Optional: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• CPU platforms: ARM RK-series, Intel Celeron (J1900/J4125/J6412), Intel Core i3/i5/i7
