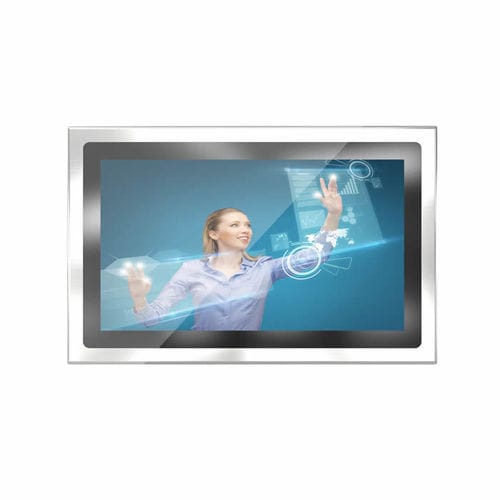

Marine panel PC ITD21PPCG1IP**

touch screenIP65IP66

Benefits

• Fully sealed industrial design protecting against dust, water and corrosive agents
• Multiple processor platforms (ARM, Intel Celeron, Intel Core) for scalable performance
• IP65/IP66 sealed I/O connectors and stainless steel or aluminum alloy enclosure
• VESA (75/100mm) mounting and multiple touchscreen options (resistive, PCAP)
• Designed for HMI/SCADA and PLC integration in harsh environments
• Configurable communications and long product lifecycle (PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth)

Overview
ITD industrial full IP65 touchscreen panel PCs combine fully sealed stainless steel or rugged aluminum alloy enclosures with sealed I/O ports to ensure reliability and continuous operation. They are intended for industrial OEMs and system integrators in process and discrete manufacturing, automation, oil & gas, chemical and petrochemical, drilling systems and other demanding environments.

Full IP65/IP66 Touchscreen Panel PC
Model Name: ITD21PPCG1IP
IP Rating: IP65/IP66 (IP67 optional)

PC Systems Options

• ARM option: Quad‑core Cortex‑A17 1.8GHz (RK3288 default; RK3399/RK3568/RK3588 optional), memory 2GB default (4/8GB optional), storage eMMC 16GB default (up to 128GB), 1×HDMI, USB options, TF slot, LAN, audio; OS Android 7.1/10/11/12+
• X86 Basic: Intel Celeron J1900/J4125/J6412, Dual‑channel DDR3, SSD default 64GB, VGA+HDMI, USB 2.0/3.0 mix, COM ports, LAN (dual LAN optional), optional PoE/Wi‑Fi/4G/5G/GPS; OS Windows/Linux
• X86 Advanced: Intel Core i3/i5/i7 (select generations), DDR3/DDR4 SODIMM, MSATA/SATA/M.2 support, VGA+HDMI, USB 2.0/3.0, COM, LAN, optional GPIO/PoE/Wi‑Fi/4G/5G/GPS; OS Windows/Linux

Default IP65 Connectors
2×USB 2.0, 1×LAN, DC 2.0 power connector

LCD Panel

• Screen size: 21.5 inch
• Resolution: 1920 × 1080 FHD
• Aspect ratio: 16:9; Active area: 476.64(H) × 268.11(V) mm
• Brightness: 250 nits; Contrast ratio: 1000:1; Colors: 16.7M
• Backlight: LED, lifetime approx. 50,000 hours; Viewing angles: 80/85/85/85

Touch Panel
Touch options: Resistive or PCAP. Drivers available for Windows, Linux, Android, Mac and Raspberry Pi.

Operation
Operating temperature: -10 ~ 60°C (optionally -20 ~ 70°C). Humidity: 10–90% RH. Designed for 24/7 continuous use.

Power
Power input: DC 12V; Typical consumption: 49 W; Power indicator: green LED.

Order Information (examples)
21.5 inch Full IP65/IP66 Panel PC with Resistive Touch, J1900 — ITD21PPCT1IPJ1; 21.5 inch Full IP65/IP66 PC with PCAP Touch, J1900 — ITD21PPCT5IPJ1; 21.5 inch Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD21PPCG1IPI3; (other configurations available)

Technical specifications

• Model: ITD21PPCG1IP
• Screen: 21.5 inch, 1920×1080 FHD
• IP rating: IP65/IP66 (IP67 optional)
• Touch: Resistive or PCAP
• Processor options: ARM RK3288 family or Intel Celeron J1900/J4125/J6412 or Intel Core i3/i5/i7
• Memory: platform dependent (default 2GB, up to DDR3/DDR4 SODIMM options)
• Storage: eMMC/SSD/M.2/MSATA/SATA support
• I/O: USB, HDMI/VGA, COM, LAN, audio; optional PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth
• Operating temp: -10~60°C (optional -20~70°C)
• Power input: DC 12V; Consumption approx. 49 W
