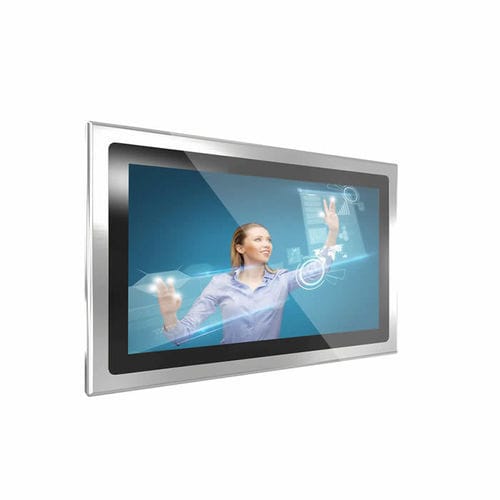

Marine panel PC ITD24PPCG1IP**

built-intouch screenembedded

BENEFITS

• Fully sealed IP65/IP66 enclosure with sealed I/O connectors to protect against dust, water and corrosive agents
• Configurable CPU options (ARM and Intel) to match performance and power requirements
• Chassis in stainless steel, steel or aluminum alloy for industrial installations
• VESA 75/100 mm mounting for wall or panel integration
• Optional touch technologies: resistive and projected capacitive (PCAP)
• Designed for HMI/SCADA and PLC integration in harsh process and discrete manufacturing environments
• Long product lifecycle and configurable I/O for OEM projects

OVERVIEW
Industrial full IP65/IP66 touchscreen panel PCs are built with fully sealed stainless steel or rugged aluminum alloy enclosures and IP65/IP66-rated I/O ports. They combine industrial-grade LCD displays, touchscreen interfaces and a choice of embedded processors to deliver reliable operation in demanding environments such as process manufacturing, industrial automation, oil & gas, chemical and petrochemical plants, drilling systems and control rooms. Fanless options, low power designs and high-brightness displays ensure visibility and durability in harsh conditions.

Full IP65/IP66 Touchscreen Panel PC
Complete IP65/IP66-rated system engineered for sealed, washdown and corrosive environments.

PC Systems Options
ARM: Quad-Core Cortex-A17 1.8GHz (RK3288 standard; RK3399/RK3568/RK3588 optional)
x86: Intel Celeron J1900/J4125/J6412; Intel Core i3/i5/i7 (4th–12th Gen optional)
Memory: Default 2GB (ARM); 4GB/8GB options; DDR3/DDR4 SODIMM on x86 models
Storage: ARM default 16GB (up to 128GB); x86 typical: 64GB SSD (M.2/MSATA/SATA options)
Video/IO: HDMI and/or VGA options; USB 2.0/3.0 combinations; 1×LAN (dual LAN optional); audio out; TF card slot; COM expansion available
Wireless & options: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO modules optional
OS: Android (7.1/10/11/12+ on ARM); Windows 7/10/11 and Linux available for Intel SKUs


Default IP65 Connectors
Typical sealed I/O: 2×USB 2.0, 1×LAN, AC 110–240V (fully sealed IP65 connectors)

LCD Panel

• Screen diagonal: 24-inch (active area 531.36 × 298.89 mm)
• Aspect ratio: 16:9
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 1000 cd/m²
• Colors: 16.7M; Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Backlight: LED with approx. 50,000 hours lifetime

Touch Panel

• Touch options: Resistive, PCAP
• Driver support: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION
Operating temperature: -10 to 60°C (optionally -20 to 70°C)
Humidity range: 10–90% RH (non-condensing)
Continuous operation: suitable for 24/7 use

POWER
Power indicator: Green LED
Power input: AC 110–240V
Power consumption: typical ~60 W (depends on configuration)

ORDER INFORMATION

• ITD24PPCT1IPJ1 — 24" Full IP65/IP66 Panel PC with Resistive Touch, J1900
• ITD24PPCT5IPJ1 — 24" Full IP65/IP66 Panel PC with PCAP Touch, J1900
• ITD24PPCG1IPJ1 — 24" Full IP65/IP66 Panel PC with Tempered Glass, J1900
• ITD24PPCT1IPI3 — 24" Full IP65/IP66 Panel PC with Resistive Touch, i3
• ITD24PPCT5IPI3 — 24" Full IP65/IP66 Panel PC with PCAP Touch, i3
• ITD24PPCG1IPI3 — 24" Full IP65/IP66 Panel PC with Tempered Glass, i3

TECHNICAL SPECIFICATIONS

• Model / Series: ITD24PPCG1IP
• IP rating: IP65 / IP66 (IP67 optional)
• Screen size: 24-inch (active area: 531.36 × 298.89 mm)
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 1000 cd/m²; Colors: 16.7M; Contrast: 1000:1
• Backlight life: LED, ~50,000 hours
• Touch: Resistive, PCAP (drivers for Windows, Linux, Android, Mac, Raspberry Pi)
• CPU options: ARM Quad-Core Cortex-A17 1.8GHz (RK3288; RK3399/RK3568/RK3588 optional); Intel Celeron J1900/J4125/J6412; Intel Core i3/i5/i7 (4th–12th Gen optional)
• Memory: Default 2GB (ARM) with 4GB/8GB options; DDR3/DDR4 SODIMM on x86
• Storage: ARM default 16GB (up to 128GB); x86: MSATA/SATA/M.2 options, default 64GB SSD
• I/O: HDMI/VGA options, USB 2.0/3.0, TF card slot, COM expansion, 1×LAN (dual LAN optional), audio out
• Optional modules: GPIO, PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth
• Operating temp: -10 to 60°C (optionally -20 to 70°C); Humidity: 10–90% RH
• Power input: AC 110–240V; Power consumption: ~60 W (varies by config)
