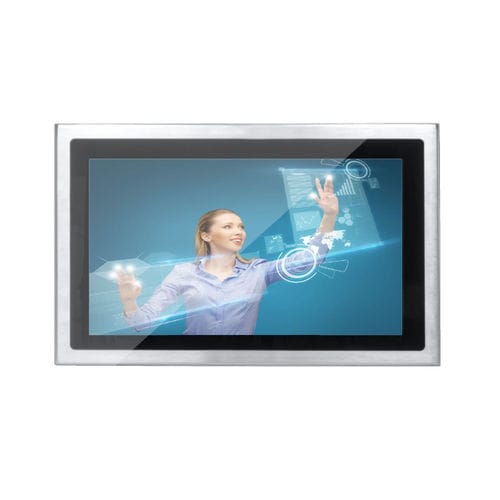

Marine panel PC ITD156PPCG1IP**

built-intouch screenembedded

BENEFITS

• Exceptional quality and highly engineered industrial panel computer
• High performance processor, graphics, memory and power
• Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP66 ratings from all directions
• Stainless steel or aluminum alloy enclosures
• IP65 sealed, full IP66 I/O connectors protect from particles, water, and corrosive agents
• Easy-to-install VESA (75/100 mm) wall mounting
• Optional touchscreens: resistive and PCAP
• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• Long lasting product cycle for continuity through all project phases

OVERVIEW
ITD industrial full IP65/IP66 touchscreen panel PCs are built in fully sealed stainless steel or rugged aluminum alloy enclosures (IP65 / NEMA 4X) with sealed I/O ports to ensure reliability in harsh environments.
Designed for PLC, HMI and SCADA use across process manufacturing, industrial automation, oil & gas, chemical and petrochemical industries, drilling systems and field equipment.
Units offer industrial-grade FHD LCDs, optional touchscreen interfaces, multiple embedded processor platforms, fanless designs, low power consumption and scratch-resistant surfaces.

GENERAL / IDENTIFICATION
Full IP65/IP66 Touchscreen Panel PC
Model Name: ITD156 PPCG1IP**
IP Rating: IP65/IP66 (IP67 optional)

PC SYSTEMS OPTIONS (summarized)
ARM Platform: Quad-Core Cortex-A17 1.8 GHz (RK3288 default; RK3399/RK3568/RK3588 optional). Memory default 2 GB (4/8 GB optional). Storage default 16 GB, up to 128 GB. I/O: 1×HDMI out, COM optional; 2×USB (expandable to 4), 1×USB OTG (optional); 1×TF card slot; 1×LAN; 1×Audio out. OS: Android 7.1/10/11/12+.

X86 Entry Platform: Intel Celeron J1900 / J4125 / J6412 options. Memory: DDR3/DDR4 SODIMM options. Storage: mSATA/SATA/M.2 (default 64 GB SSD). I/O: VGA, HDMI; up to 6×USB; 2×COM (expandable); 1×LAN (dual LAN optional); Audio Line-Out/MIC. OS: Windows 7/10, Linux (Windows 11 available for supported CPUs).

High Performance X86: Intel Core i3/i5/i7 (4th–12th Gen optional). DDR3/DDR4 SODIMM support, mSATA/SATA/M.2 storage options and extensive I/O/expansion. OS: Windows, Linux.

DEFAULT IP65 CONNECTORS
2×USB 2.0, 1×LAN, DC 2.0 (default connector set)

LCD PANEL
Screen diagonal: 15.6" (active area 344.16 mm × 193.59 mm)
Aspect ratio: 16:9
Resolution: 1920×1080 (FHD)
Colors: 262K
Brightness: 300 cd/m²
Contrast ratio: 800:1
Viewing angles: 85/85/85/85
Backlight: LED, 50,000 hours lifetime

TOUCH PANEL
Touch options: Resistive, PCAP, Infrared
Drivers: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION
Operating temperature: -10 ~ 60°C (optional -20 ~ 70°C)
Humidity: 10–90% RH
Designed for continuous 24/7 operation

POWER
Power indicator: Green LED
Power input: DC 12V
Power consumption: 20W–40W

TECHNICAL SPECIFICATIONS

• Product family / model: ITD156 series
• IP Rating: IP65 / IP66 (IP67 optional)
• Display: 15.6" FHD (1920×1080), 16:9, 300 cd/m², 800:1, 262K colors
• Backlight lifetime: LED 50,000 hours
• Touch options: Resistive, PCAP, Infrared; drivers for Windows/Linux/Android/Mac/Raspberry Pi
• Main CPU options: ARM RK3288 (Quad-Core 1.8 GHz), Intel Celeron J1900/J4125/J6412, Intel Core i3/i5/i7 (4th–12th Gen optional)
• Memory: default 2 GB (ARM), DDR3/DDR4 options for x86; upgradable
• Storage: eMMC/SSD defaults (16 GB ARM, 64 GB SSD x86), supports mSATA/SATA/M.2
• I/O: HDMI/VGA options, multiple USB ports (2–6), COM ports (1–6), TF card slot, LAN (dual optional), audio Line-Out/MIC
• Expansion: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO (optional)
• OS support: Android (7.1/10/11/12+), Windows 7/10/11 (on supported CPUs), Linux
• Mounting: VESA 75/100 mm
• Enclosure: Stainless steel or aluminum alloy; sealed I/O for harsh environments
• Power: DC 12V input; consumption 20W–40W
• Operating conditions: -10~60°C standard (-20~70°C optional), 10–90% RH
