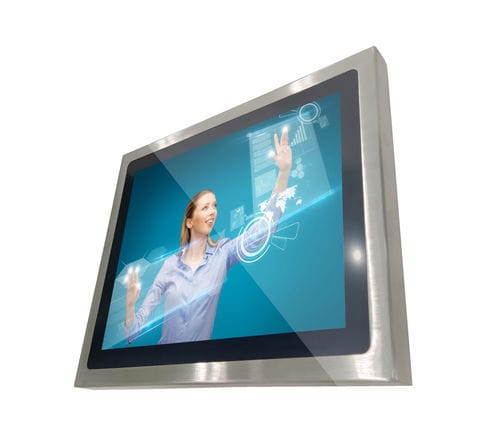

Marine panel PC ITD10PPCG1IP**

built-intouch screenembedded

Benefits

• Exceptional quality and highly engineered industrial panel computer
• High Performance Processor, Graphics, Memory and Power
• Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
• Solid steel and stainless steel or aluminum alloy enclosures
• IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
• Easy-to-install VESA (75/100mm) wall mounting
• Optional touchscreens like resistive and PCAP
• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• Long lasting product cycle for continuity thru all phases of project

Overview
ITD industrial full IP65 touchpanel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability and durability. These Full IP65 touch panel PCs feature industrial-grade LCD flat screens, touchscreen interfaces, Intel and ARM embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities suitable for harsh environments such as process and discrete manufacturing, industrial automation, oil & gas, chemical and petrochemical industries, drilling systems, control and monitoring, oilfield equipment and custom HMI applications.

Key Features

• Fully sealed IP65/IP66 (IP67 optional) system with sealed I/O connectors
• Multiple PC system options: ARM (Rockchip RK3288/RK3399/RK3568/RK3588) and X86 (Intel Celeron / Intel Core series)
• Various touchscreen options: Resistive, PCAP, Tempered Glass
• Wide operating temperature and humidity ranges with 24/7/365 support
• Optional connectivity and extensions: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO

Caractéristiques / Spécifications techniques

• Model Name: ITD 10.4-inch Full IP65/IP66 Touchscreen Panel PC (example model id shown: ITD10PPCG1IP**)
• IP Rating: IP65 / IP66 (IP67 optional)
• PC Systems Options: ARM Quad Core Cortex-A17 1.8GHz (RK3288; RK3399/RK3568/RK3588 optional), X86 Based options including Intel Celeron J1900/J4125/J6412 and Intel Core i3/i5/i7 (4th~12th Gen optional)
• CPU (examples): Quad-Core Cortex-A17 1.8GHz; Intel Celeron J1900/J4125/J6412 2.0GHz; Intel Core i3/i5/i7 (4th~12th Gen optional)
• Chipset: Rockchip (ARM) or Intel SoC/Bay Trail (X86) depending on configuration
• Memory: Default 2GB (options 4GB/8GB); X86 options: Dual Channel DDR3 1333/1600MHz or DDR4 SODIMM depending on CPU
• Storage: ARM default 16GB (max 128GB); X86: 1×mSATA, 1×SATA and 1×M.2 (default to 64GB SSD; M.2 not available for J1900 in some configs)
• Graphics / Video outputs: 1×HDMI output (ARM); X86: 1×VGA, 1×HDMI
• USB: ARM examples 2×USB (max 4) + 1×USB OTG optional; X86 examples 2×USB2.0, 2×USB3.0 (max 6)
• Expansion & I/O: 1×TF card slot (support 8~128GB) on ARM; COM ports: 2×COM (max 6) on some X86 models; LAN: 1×LAN (Dual LAN optional)
• Audio: 1×Audio Out; X86 examples include Realtek ALC662 with Line-Out/MIC In
• Default IP65 Connectors: 2×USB2.0, 1×LAN, DC 2.0 (example default set)
• LCD Panel: Screen diagonal 10.4-inch; Active screen size 211.2 (H) x 158.4 (V) mm; Aspect ratio 4:3
• Physical Resolution: 800 × 600
• Maximum Resolution Supported: 1920 × 1080
• Colors: 16.7M
• Brightness: 300 nits
• Contrast Ratio: 500:1
• View Angles: 80/80/70/70
• Backlight: LED backlight with ~50,000 hours lifetime
• Touch Panel Options: Resistive, PCAP; Touch drivers supported for Windows, Linux, Android, Mac, Raspberry Pi
• Operating Temperature Range: -10 ~ 60 °C (optional -20 ~ 70 °C)
• Humidity Range (RH): 10 - 90%
• 24/7/365 Use: Supported
• Power Indicator: Green LED
• Power Input: DC 12V
• Power Consumption: ~15 W
• Optional Modules: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO
• Supported OS: Android 7.1/10/11/12 or newer (ARM); Windows 7/10, Linux, Windows 11 available for certain Intel configurations
• Order Information / Example configurations: 10.4-inch Full IP65/IP66 Panel PC with various touch and CPU options (product codes shown on site for specific configurations)
