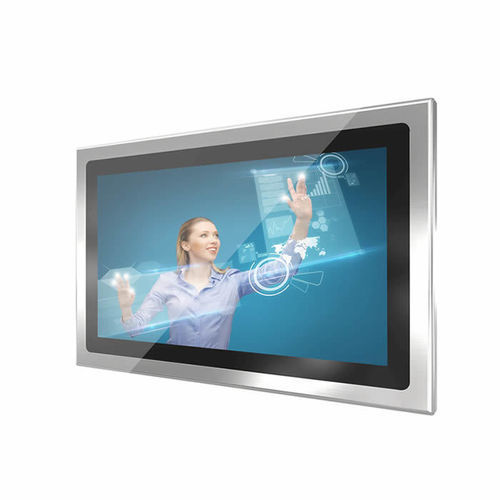

Marine panel PC ITD173PPCG1IP**

built-intouch screenembedded

BENEFITS

• Exceptional quality and highly engineered industrial panel computer
• High Performance Processor, Graphics, Memory and Power
• Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP66 ratings from all directions
• Stainless steel or aluminum alloy enclosures
• IP65 sealed, Full IP66 I/O connectors protect from particles, water, and corrosive agents
• Easy-to-install VESA (75/100mm) wall mounting
• Optional touchscreens: resistive and PCAP
• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• Long lasting product cycle for continuity through all phases of project

OVERVIEW
ITD industrial full IP65/IP66 touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy enclosures with environmental ratings on the entire system including fully sealed I/O ports that provide reliability and durability. These systems support industrial-grade LCD flat screens, touchscreen interface, Intel and ARM embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities ideal for harsh environments such as process manufacturing, industrial automation, oil & gas, chemicals, petrochemical industries, drilling systems, control & monitoring, oilfield equipment and custom HMI applications.

Full IP65/IP66 Touchscreen Panel PC - Key Table
Model Name: ITD173 PPCG1IP**
IP Rating: IP65/IP66 (IP67 optional)

PC Systems Options
ARM Quad Core Cortex-A17 1.8GHz (RK3288; RK3399/RK3568/RK3588 optional) | X86 Based (Celeron families) | X86 Based (Intel Core i3/i5/i7 options)
CPU options: Quad-Core Cortex-A17 1.8GHz | Intel Celeron J1900/J4125/J6412 2.0GHz | Intel Core i3/i5/i7 (4th~12th Gen optional)
Chipset: Rockchip | Intel Bay Trail SoC | Intel SoC Chipset
Memory: Default 2GB (4GB/8GB optional) | Dual Channel DDR3 1333/1600; DDR4 SODIMM (for J4125/J6412) | 2×DDR3 or DDR4 SODIMM (varies by generation)
Storage: Default to 16GB (ARM) max 128GB | 1×mSATA, 1×SATA, 1×M.2 (Default 64GB SSD) | 1×mSATA, 1×SATA, 1×M.2 (Default 64GB SSD)
Video/Display outputs: 1×HDMI Output (ARM); 1×VGA, 1×HDMI (x86 options)
USB: 2×USB (ARM, up to 4, 1×USB OTG optional) | 2×USB2.0, 2×USB3.0 (up to 6) (x86)
Card/COM: 1×TF Card Slot (8~128G) (ARM) | 2×COM (up to 6) (x86)
LAN: 1×LAN (ARM) | 1×LAN, Dual LAN optional (x86)
Audio: 1×Audio Out (ARM) | Realtek ALC662 1×Line-Out/MIC In (x86)
Optional: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO (optional across platforms)
OS: Android 7.1/10/11/12 or newer (ARM) | Windows 7/10, Linux; Windows 11 available for certain Intel SKUs

Default IP65 Connectors
2× USB 2.0 | 1× LAN | DC 2.0 power connector

LCD PANEL
Screen Diagonal: 17.3"
Active Screen Size: 382.08 (H) × 214.92 (V) mm
Aspect Ratio: 16:9
Physical Resolution: 1920 × 1080 (Full HD)
Maximum Resolution Supported: 1920 × 1080
Colors: 262K
Brightness: 300 cd/m²
Contrast Ratio: 800:1
Viewing Angles: 85/85/85/85
Backlight: LED Backlight with 50,000 hours lifetime

TOUCH PANEL
Touch Options: Resistive, PCAP, Infrared
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION
Operating Temperature Range: -10 ~ 60 °C (option -20 ~ 70 °C)
Humidity Range (RH): 10–90%
24/7/365 Use: Supported

POWER
Power Indicator: Green LED
Power Input: DC 12V
Power Consumption: 25W ~ 45W

ORDER INFORMATION (examples of available configurations)
Typical SKUs: ITD173PPCT1IPSE1, ITD173PPCT5IPSE1, ITD173PPCG1IPSE1, ITD173PPCT1IPSJ1, ITD173PPCT5IPSJ1, ITD173PPCG1IPSJ1, ITD173PPCT1IPSI3, ITD173PPCT5IPSI3, ITD173PPCG1IPSI3, ITD173PPCT1IPSI5, ITD173PPCT5IPSI5, ITD173PPCG1IPSI5, ITD173PPCT1IPSI7, ITD173PPCT5IPSI7, ITD173PPCG1IPSI7
