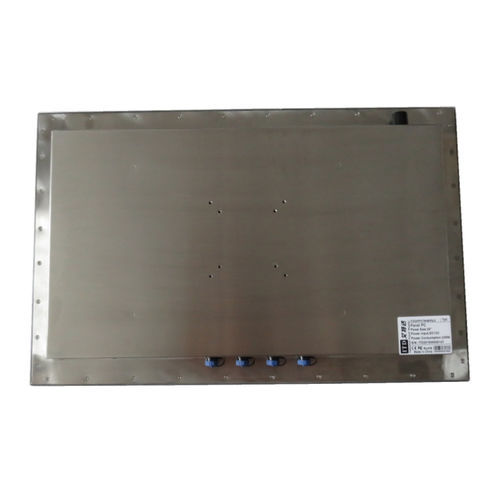

Marine panel PC ITD18PPCG1IP**

built-intouch screenembedded

BENEFITS

• Industrial-grade, fully sealed stainless steel or aluminum alloy panel PC for harsh environments
• Multiple CPU platforms (ARM, Intel Celeron, Intel Core) to match performance and power needs
• Full IP65/IP66 protection with optional IP67 and fully sealed I/O for washdown, dust and corrosive atmospheres
• Standard VESA 75/100 mm mounting for quick integration
• Touchscreen options (resistive, PCAP, infrared) and tempered glass variants
• Flexible expansion: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• Designed for continuous 24/7 industrial operation

OVERVIEW
The ITD18 family of 18.5" full IP65/IP66 panel PCs provides a fully sealed HMI platform in stainless steel or rugged aluminum alloy enclosures. Complete system-level sealing includes IP-rated connectors, ensuring reliability in process manufacturing, industrial automation, oil & gas, chemical and petrochemical environments, drilling sites and other applications requiring washdown and corrosion resistance. Available with industrial LCDs, multiple touchscreen technologies and a choice of ARM or x86 computing platforms, the ITD18 series supports PLC, HMI and SCADA implementations with fanless designs and low power consumption.

KEY TABLE SUMMARY
Full IP65/IP66 Touchscreen Panel PC

Model Name: ITD18 PPCG1IP**
IP Rating: IP65 / IP66 (IP67 optional)

PC SYSTEMS OPTIONS

• ARM: Quad‑Core Cortex‑A17 1.8GHz RK3288 (RK3399 / RK3568 / RK3588 optional)
• X86: Intel Celeron J1900 / J4125 / J6412 2.0GHz
• Intel Core i3 / i5 / i7 (4th–12th Gen options)

CPU / CHIPSET / MEMORY / STORAGE / I/O (SUMMARY)

• ARM: CPU Quad‑Core Cortex‑A17 1.8GHz; Chipset: Rockchip; Memory default 2GB (4GB/8GB optional); Storage default 16GB (up to 128GB); Video: 1×HDMI; USB: 2×USB (expandable to 4×, 1×USB OTG optional); TF Card slot; LAN: 1×RJ45; Audio: 1×Audio Out; Options: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth; OS: Android 7.1/10/11/12+
• Intel Celeron: CPU Intel Celeron J1900 / J4125 / J6412 2.0GHz; Chipset: Intel Bay Trail / SoC variants; Memory: Dual‑channel DDR3 (1333/1600MHz); Storage: 1×mSATA, 1×SATA, 1×M.2 (not for J1900) default 64GB SSD; Video: VGA + HDMI; USB: 2×USB2.0, 2×USB3.0 (expandable); COM: up to 6; LAN: 1×RJ45 (dual LAN optional); Audio: Realtek ALC662 Line‑Out/MIC‑In; OS: Windows 7/10, Linux, Windows 11 (platform dependent)
• Intel Core i3/i5/i7: Intel SoC chipset; Memory: 2×SODIMM DDR3 or DDR4 (platform dependent); Storage: mSATA/SATA/M.2 default 64GB SSD; Video: VGA + HDMI; I/O and optional modules similar to above; OS: Windows / Linux (gen dependent)

DEFAULT IP65 CONNECTORS
2×USB 2.0, 1×LAN, DC 2.0

LCD PANEL
Screen diagonal: 18.5"
Active area: 409.8 × 230.4 mm
Aspect ratio: 16:9
Physical resolution: 1366 × 768 (supports up to 1920 × 1080)
Colors: 16.7M; Brightness: 250 cd/m²; Contrast: 1000:1
Viewing angles: 85/85/80/80
Backlight: LED, 50,000 h life

TOUCH PANEL
Touch options: Resistive, PCAP, Infrared
Driver support: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION
Operating temperature: -10 ~ 60°C (optional -20 ~ 70°C)
Humidity: 10–90% RH
Designed for 24/7 continuous operation

POWER
Power indicator: Green LED
Power input: DC 12V
Power consumption: 28W–48W (depending on configuration)

ORDER INFORMATION / CONFIGURATION EXAMPLES

• 18.5" Full IP65/IP66 Panel PC, Resistive Touch, Android RK3288 — ITD18PPCT1IPSE1
• 18.5" Full IP65/IP66 Panel PC, PCAP Touch, Android RK3288 — ITD18PPCT5IPSE1
• 18.5" Full IP65/IP66 Panel PC, Tempered Glass, Android RK3288 — ITD18PPCG1IPSE1
• 18.5" Full IP65/IP66 Panel PC, Resistive Touch, J1900 — ITD18PPCT1IPSJ1
• 18.5" Full IP65/IP66 Panel PC, PCAP Touch, J1900 — ITD18PPCT5IPSJ1
• 18.5" Full IP65/IP66 Panel PC, Tempered Glass, J1900 — ITD18PPCG1IPSJ1
• Configurations with i3/i5/i7 available — examples: ITD18PPCT1IPSI3, ITD18PPCT5IPSI5, ITD18PPCG1IPSI7

FEATURES / TECHNICAL SPECIFICATIONS

• Model Name: ITD18 (product family: ITD18 PPCG1IP**)
• IP Rating: IP65 / IP66 (IP67 optional)
• Screen size: 18.5" (409.8 × 230.4 mm active)
• Native resolution: 1366 × 768 (supports up to 1920 × 1080)
• Colors: 16.7M; Brightness: 250 cd/m²; Contrast ratio: 1000:1
• Backlight: LED, 50,000 h
• Touch options: Resistive, PCAP, Infrared
• CPU options: ARM RK3288; Intel Celeron J1900/J4125/J6412; Intel Core i3/i5/i7 (4th–12th Gen)
• Memory: ARM default 2GB (4/8GB optional); Intel platforms support DDR3/DDR4 SODIMM
• Storage: ARM default 16GB (max 128GB); Intel default 64GB SSD (mSATA/SATA/M.2)
• Video output: HDMI (ARM); VGA + HDMI (Intel)
• USB: from 2× up to 6× depending on platform; USB OTG optional
• COM ports: up to 6 (platform dependent)
• LAN: 1×RJ45 (dual LAN optional)
• Audio: Line‑out / Mic‑in (Realtek on Intel)
• Optional modules: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• Operating temp: -10 ~ 60°C (option -20 ~ 70°C)
• Humidity: 10–90% RH
• Power input: DC 12V; Consumption: 28W–48W
• Mounting: VESA 75/100 mm
