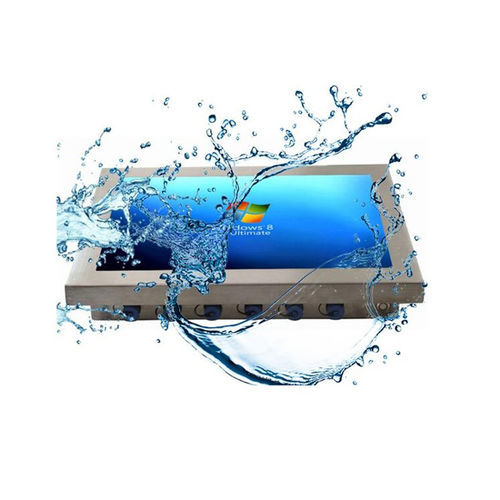

Marine panel PC ITD15PPCG1IP**

touch screenwaterproofwith sealed box

BENEFITS

• Industrial-grade sealed panel PC designed for harsh environments and continuous 24/7 operation
• Multiple processor platforms (ARM and x86) and scalable memory/storage options
• Fully sealed IP65/IP66 enclosure and I/O for protection against dust, water and corrosive agents
• Choice of enclosure materials: stainless steel or rugged aluminum alloy
• Optional touchscreen technologies (resistive, PCAP) and peripherals (PoE, WiFi, 4G/5G, GPS)
• VESA (75/100 mm) mounting for flexible installation

OVERVIEW
ITD 15-inch full IP65/IP66 touchscreen panel PCs feature fully sealed stainless steel or rugged aluminum alloy enclosures with environmental ratings applied to the entire system, including sealed I/O ports. They support industrial-grade LCD sizes, touchscreen interfaces, multiple CPU families, fanless low-power designs and scratch-resistant front surfaces. Typical applications include process and discrete manufacturing, industrial automation, oil & gas, chemical and petrochemical plants, drilling systems, control and monitoring stations, and custom HMI/SCADA solutions.

KEY IDENTIFICATION
Full IP65/IP66 Touchscreen Panel PC

Model Name
ITD 15PPCG1IP series

IP Rating
IP65 / IP66 (IP67 optional)

PC Systems Options (examples)
ARM Quad-Core Cortex-A17 1.8 GHz (RK3288; RK3399/RK3568/RK3588 optional)
X86: Intel Celeron J1900 / J4125 / J6412 (2.0 GHz); Intel Core i3/i5/i7 (4th–12th Gen optional)

Selected System Configurations (summary)
ARM: Quad-Core Cortex-A17 1.8 GHz; Rockchip chipset; Memory default 2 GB (4/8 GB optional); Storage default 16 GB (up to 128 GB); I/O: HDMI, USB, TF slot, LAN, audio; OS: Android variants.
X86 (J1900/J4125/J6412): Intel Celeron 2.0 GHz; Dual-channel DDR3/DDR4 as applicable; Storage: mSATA / SATA / M.2 (varies); Video: VGA + HDMI; USB mix of 2.0/3.0; COM ports up to 6; optional Dual LAN, GPIO, PoE; OS: Windows / Linux (Windows 11 on supported SKUs).

Default IP65 Connectors
2 × USB 2.0, 1 × LAN, DC 2.0 power

LCD Panel
Screen diagonal: 15" (active area 304.1 × 228.1 mm)
Aspect ratio: 4:3
Physical resolution: 1024 × 768 (panel); max supported 1920 × 1080
Colors: 16.7M
Brightness: 250 nits
Contrast ratio: 700:1
Viewing angles: 80/80/60/80
Backlight: LED, 50,000 h lifetime

Touch Panel
Options: Resistive or Projected Capacitive (PCAP)
Drivers: Windows, Linux, Android, macOS, Raspberry Pi

Operation
Operating temperature: -10 ~ 60 °C (optionally -20 ~ 70 °C)
Humidity: 10–90% RH
Designed for continuous 24/7 operation

Power
Power indicator: Green LED
Power input: DC 12 V
Typical consumption: ~26 W (varies by configuration)

Order Information (examples)
15" Full IP65/IP66 Panel PC with Resistive Touch, J1900 — ITD15PPCT1IPJ1
15" Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD15PPCT5IPJ1
15" Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD15PPCG1IPJ1
15" Full IP65/IP66 Panel PC with Resistive Touch, i3 — ITD15PPCT1IPI3
15" Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD15PPCT5IPI3
15" Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD15PPCG1IPI3

Technical specifications

• Product: 15 inch Full IP65/IP66 Touchscreen Panel PC
• Brand: ITD
• Model / Series: 15PPCG1IP series
• IP rating: IP65 / IP66 (IP67 optional)
• Screen size: 15" (304.1 × 228.1 mm active)
• Resolution: 1024 × 768 (panel); max supported 1920 × 1080
• Aspect ratio: 4:3
• Brightness: 250 nits
• Contrast ratio: 700:1
• Backlight lifetime: 50,000 hours (LED)
• Touch options: Resistive or PCAP
• Typical CPUs: ARM RK3288 family; Intel Celeron J1900/J4125/J6412; Intel Core i3/i5/i7 (4th–12th gen)
• Memory: default 2 GB (options to 4/8 GB or platform-dependent SODIMM)
• Storage: eMMC/SSD options up to 128 GB; mSATA/SATA/M.2 depending on config
• I/O: HDMI, VGA (depending on SKU), USB 2.0/3.0, COM ports, LAN (single/dual optional), audio out
• Optional: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO
• Operating temperature: -10 ~ 60 °C (optionally -20 ~ 70 °C)
• Humidity: 10–90% RH
• Power input: DC 12 V; typical consumption ~26 W
