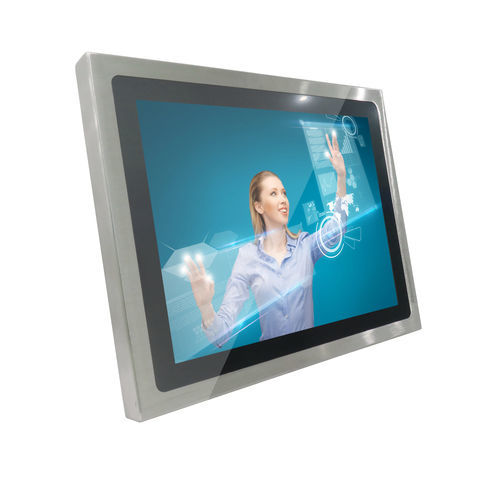

Marine panel PC ITD12PPCG1IP**

touch screenfor harsh environmentswith sealed box

Benefits

• Exceptional quality and highly engineered industrial panel computer
• High performance processor, graphics, memory and power options
• Ruggedized environmental ratings: NEMA 12, 4X, 4 and IP52/IP56/IP65 from all directions
• Enclosure options: stainless steel, solid steel or aluminum alloy
• Full IP65 sealed I/O connectors protect against particles, water and corrosive agents
• Easy-to-install VESA (75/100 mm) wall mounting
• Touchscreen options: resistive and PCAP (projected capacitive)
• Flexible platform for HMI/SCADA, PLC and industrial automation applications
• Long product lifecycle to support project continuity

Overview
ITD industrial full IP65 touchpanel PCs are built with fully sealed stainless steel or rugged aluminum alloy enclosures (IP65 / NEMA 4X) and include fully sealed I/O ports to deliver reliability and durability in harsh environments. These systems provide a broad set of technologies and configurable options to simplify PLC, HMI and SCADA integration. Models feature industrial-grade LCDs, touchscreen interfaces, a range of embedded processors and chipsets, fanless designs, low power consumption and scratch-resistant front panels—suitable for process and discrete manufacturing, industrial automation, oil & gas, chemical and petrochemical industries, drilling systems, field equipment and custom HMI installations.

Product Summary / Table
Full IP65/IP66 Touchscreen Panel PC
Model Name: ITD 12PPCG1IP**
IP Rating: IP65/IP66 (IP67 optional)

PC Systems Options
ARM Quad Core Cortex-A17 1.8 GHz (RK3288; RK3399/RK3568/RK3588 optional) | x86 based options
CPU options: Quad-Core Cortex-A17 1.8 GHz | Intel Celeron J1900 / J4125 / J6412 2.0 GHz | Intel Core i3 / i5 / i7 (4th–12th Gen optional)
Chipset: Rockchip | Intel Bay Trail SoC | Intel SoC chipsets
Memory: Default 2 GB, 4 GB / 8 GB optional | DDR3 / DDR4 options depending on CPU
Storage: Default 16 GB (ARM) or 64 GB SSD (some Intel variants); supports mSATA, SATA, M.2 depending on configuration
Video I/O: 1×HDMI output (ARM); VGA + HDMI (Intel options)
USB: 2×USB default, up to 4–6 ports depending on config; USB OTG optional
Card Slot / COM / LAN / Audio: TF card slot, COM ports (1–6), LAN (1, dual optional), audio out
Optional features: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO, etc.
OS: Android 7.1/10/11/12 or newer | Windows 7/10/11 (depending on CPU) | Linux

Default IP65 Connectors
2 × USB 2.0 | 1 × LAN | DC 2.0

LCD Panel
Screen diagonal: 12.1"
Active area: 248 (W) × 186 (H) mm
Aspect ratio: 4:3
Native resolution: 800 × 600
Maximum supported: up to 1920 × 1080
Colors: 16.7M
Brightness: 300 cd/m²
Contrast ratio: 700:1
Viewing angles: 80/80/70/70
Backlight: LED, 50,000 hours lifetime

Touch Panel
Touch options: Resistive, PCAP
Driver support: Windows, Linux, Android, Mac, Raspberry Pi

Operation
Operating temperature: -10 to 60 °C (optionally -20 to 70 °C)
Humidity: 10–90% RH
Continuous operation: 24/7 supported

Power
Power indicator: Green LED
Power input: DC 12 V
Power consumption: ~22 W

Order Information (examples)
12.1” Full IP65/IP66 Panel PC with Resistive Touch, J1900 — ITD12PPCT1IPJ1
12.1” Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD12PPCT5IPJ1
12.1” Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD12PPCG1IPJ1
12.1” Full IP65/IP66 Panel PC with Resistive Touch, i3 — ITD12PPCT1IPI3
12.1” Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD12PPCT5IPI3
12.1” Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD12PPCG1IPI3

Technical specifications

• Model name: ITD 12PPCG1IP (series identifier as shown)
• IP rating: IP65 / IP66 (IP67 optional)
• Display: 12.1 inch, active area 248 × 186 mm, native 800 × 600, supports up to 1920 × 1080
• Brightness / Contrast: 300 cd/m² / 700:1
• Backlight lifetime: LED, 50,000 hours
• CPU options: ARM RK3288 (Quad A17 1.8 GHz) or Intel Celeron J1900 / J4125 / J6412 or Intel Core i3 / i5 / i7 (4th–12th Gen)
• Memory: Default 2 GB, up to 8 GB depending on CPU and configuration
• Storage: eMMC / SSD defaults (16 GB ARM; 64 GB SSD for some Intel); supports mSATA / SATA / M.2 per configuration
• I/O: USB (2–6), HDMI / VGA options, COM ports (1–6), LAN (1, dual optional), audio out, TF card slot
• Optional: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• OS support: Android 7.1/10/11/12 or newer; Windows 7/10/11 (CPU dependent); Linux
• Operating temp: -10 to 60 °C (option -20 to 70 °C); humidity 10–90% RH
• Power: DC 12 V input, ~22 W consumption, green LED power indicator
