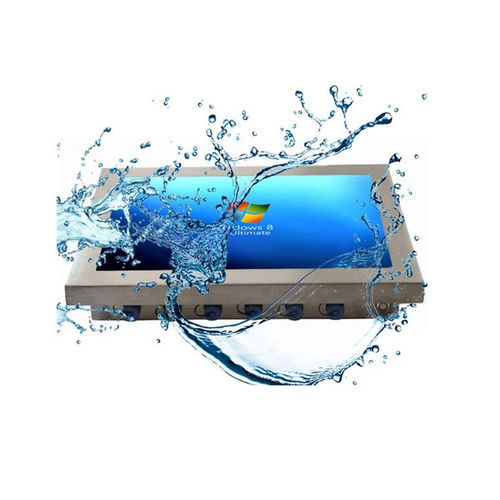

Marine panel PC ITD17PPCG1IP**

touch screenIP65IP66

BENEFITS

• Industrial-grade sealed panel PC for harsh environments
• Multiple CPU platforms: ARM and x86 options for flexible performance
• Full-system IP65/IP66 protection including sealed I/O connectors
• Choice of stainless steel or rugged aluminum alloy enclosures
• Available resistive and PCAP touch technologies
• VESA 75/100 mounting for simple installation
• Configurable I/O and communication options: PoE, WiFi, 4G/5G, GPS, Bluetooth
• Designed for continuous 24/7 operation in industrial HMI/SCADA applications

OVERVIEW
ITD industrial full IP65 touchpanel PCs feature fully sealed stainless steel or rugged aluminum alloy enclosures with IP65/IP66-rated protection across the complete system, including sealed I/O. They are intended for PLC, HMI and SCADA deployments and for use in process and discrete manufacturing, industrial automation, oil & gas, chemical and petrochemical environments, drilling control, and other demanding control and monitoring applications. Systems support industrial-grade LCDs, resistive or PCAP touchscreens, ARM and Intel processor options, fanless low-power designs, and scratch-resistant front panels.

Model and IP Rating
Model Name: ITD 17PPCG1IP
IP Rating: IP65/IP66 (IP67 optional)

PC Systems Options
ARM: Quad-Core Cortex-A17 1.8GHz RK3288 (RK3399/RK3568/RK3588 optional)
X86: Intel Celeron J1900/J4125/J6412 2.0GHz; Intel Core i3/i5/i7 (4th–12th Gen optional)
Chipsets: Rockchip / Intel Bay Trail SoC / Intel SoC chipset
Memory: Default 2GB, optional 4GB/8GB; DDR3/DDR4 SODIMM options depending on platform
Storage: ARM default eMMC 16GB (up to 128GB); X86 options include mSATA, SATA, M.2 (common default 64GB SSD)
Video / I/O: ARM: 1×HDMI output; X86: 1×VGA + 1×HDMI; COM ports available as options
USB: ARM: 2×USB (up to 4), 1×USB OTG optional; X86: 2×USB2.0 + 2×USB3.0 (expandable)
Card / COM: TF card slot on some platforms; COM expansion up to 6 ports
LAN / Audio: 1×LAN (dual LAN optional); Audio out/Line-Out & MIC In on Intel platforms
Optional: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO
Operating Systems: Android 7.1/10/11/12+ on ARM; Windows 7/10, Linux, Windows 11 available on selected Intel SKUs

Default IP65 Connectors
Default IP65 connectors typically include USB 2.0, LAN and DC power connectors (example: 2×USB2.0, 1×LAN, DC 2.0), configurable by SKU

LCD PANEL
Screen diagonal: 17"
Active area: 337.920(H) x 270.336(V) mm
Aspect ratio: 4:3
Physical resolution: 1280 x 1024
Maximum supported resolution: 1920 x 1080
Colors: 16.7M
Brightness: 250 nits
Contrast ratio: 1000:1
Viewing angles: 85/85/80/80 (L/R/U/D)
Backlight: LED, lifetime ~50,000 hours

TOUCH PANEL
Touch options: Resistive, PCAP
Supported drivers: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION
Operating temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
Humidity range (RH): 10 - 90%
Continuous operation: 24/7/365 supported

POWER
Power indicator: Green LED
Power input: DC 12V
Typical power consumption: 35 W

ORDER INFORMATION
Examples of configurable SKUs:
17" Full IP65/IP66 Panel PC with Resistive Touch, J1900 — ITD17PPCT1IPJ1
17" Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD17PPCT5IPJ1
17" Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD17PPCG1IPJ1
Equivalent SKUs available with Intel i3/i5/i7 configurations

TECHNICAL SPECIFICATIONS

• Brand: ITD
• Model: ITD 17PPCG1IP
• Protection rating: IP65 / IP66 (IP67 optional)
• Display size: 17" (active 337.920 x 270.336 mm)
• Native resolution: 1280×1024 (max 1920×1080)
• Colors: 16.7M
• Brightness: 250 nits
• Contrast: 1000:1
• Viewing angle: 85/85/80/80
• Backlight: LED, lifetime ~50,000 hours
• Touch options: Resistive, PCAP (drivers: Windows, Linux, Android, Mac, Raspberry Pi)
• CPU options: ARM Cortex-A17 (RK3288) / Intel Celeron (J1900/J4125/J6412) / Intel Core i3/i5/i7 (4th–12th Gen optional)
• Memory: Default 2GB, options 4GB/8GB; DDR3/DDR4 SODIMM according to platform
• Storage: eMMC/mSATA/SATA/M.2 options (defaults vary; 64GB SSD common on X86)
• I/O connectivity: USB, HDMI, VGA (platform dependent), LAN (dual optional), audio, COM ports optional
• Optional features: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO
• Supported OS: Android (ARM), Windows/Linux (X86), Windows 11 on selected Intel platforms
• Operating temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
• Humidity: 10 - 90% RH
• Power: DC 12V / Typical consumption 35 W
