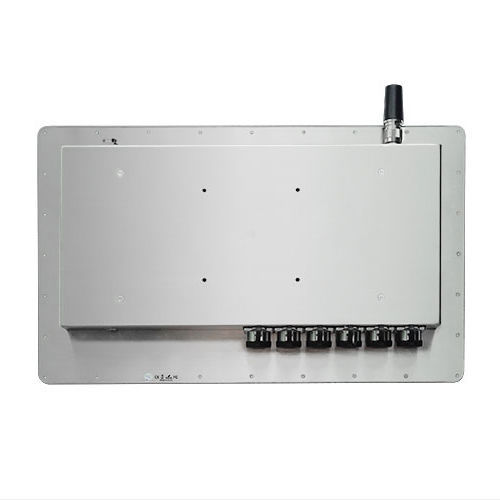

Marine panel PC ITD13PPCG1IP**

built-intouch screencorrosion-resistant

BENEFITS

• Fully sealed industrial panel PC for harsh environments with IP65/IP66 protection
• Multiple CPU platforms: ARM (Rockchip), Intel Celeron, Intel Core options for scalable performance
• Stainless steel or aluminum alloy enclosure with fully sealed I/O
• 13.3" FHD 1920×1080 display, 400 nits, LED backlight (50,000 h)
• Touch options: Resistive, PCAP, Infrared — drivers for Windows, Linux, Android, Mac, Raspberry Pi
• Flexible connectivity and expansion: USB, COM, LAN, GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth
• VESA 75/100mm mounting for easy integration into machines and cabinets

OVERVIEW
ITD full IP65/IP66 13.3" panel PCs are engineered with fully sealed stainless steel or rugged aluminum alloy enclosures and sealed I/O connectors to protect against dust, water, and corrosive agents. Designed for industrial OEMs, they support PLC, HMI and SCADA applications with fanless, low-power platforms and industrial-grade LCD panels suitable for process and discrete manufacturing, automation, oil & gas, chemical and petrochemical environments.

FULL IP65/IP66 TOUCHSCREEN PANEL PC
Model Name: ITD13 PPCG1IP**
IP Rating: IP65/IP66 (IP67 optional)

PC SYSTEMS OPTIONS
ARM Quad-Core Cortex-A17 1.8GHz (RK3288; RK3399/RK3568/RK3588 optional). Default memory/storage and upgrade options available.
X86 entry: Intel Celeron J1900/J4125/J6412 — supports mSATA/SATA/M.2, VGA/HDMI, multiple USB and COM ports, Windows/Linux.
Intel Core family: i3/i5/i7 (4th–12th Gen optional) — dual SO-DIMM memory, mSATA/SATA/M.2, optional PoE/WiFi/4G/5G/GPS/Bluetooth, Windows/Linux.

DEFAULT IP65 CONNECTORS
Default set: 2×USB2.0, 1×LAN, DC 12V (configurable per order)

LCD PANEL
Screen: 13.3" diagonal, Active area 293.472×165.078 mm, FHD 1920×1080, 16.2M colors, 400 nits, contrast 800:1, viewing angles 85/85/85/85, LED backlight 50,000 h

TOUCH PANEL
Options: Resistive, PCAP, Infrared. Drivers supported for Windows, Linux, Android, Mac, Raspberry Pi.

OPERATION
Operating temperature: -10 °C to 60 °C (optionally -20 °C to 70 °C). Humidity: 10–90% RH. 24/7 operation supported.

POWER
Power input: DC 12V. Consumption: 18W–35W. Power indicator: Green LED.

ORDER INFORMATION (example SKUs)
13.3" Full IP65/IP66 Panel PC with Resistive Touch, Android RK3288 — ITD13PPCT1IPSE1
13.3" Full IP65/IP66 Panel PC with PCAP Touch, Android RK3288 — ITD13PPCT5IPSE1
13.3" Full IP65/IP66 Panel PC with Tempered Glass, Android RK3288 — ITD13PPCG1IPSE1
13.3" Full IP65/IP66 Panel PC with Resistive Touch, J1900 — ITD13PPCT1IPSJ1
13.3" Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD13PPCT5IPSJ1
13.3" Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD13PPCG1IPSJ1
13.3" Full IP65/IP66 Panel PC with Resistive Touch, i3 — ITD13PPCT1IPSI3
13.3" Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD13PPCT5IPSI3
13.3" Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD13PPCG1IPSI3
13.3" Full IP65/IP66 Panel PC with Resistive Touch, i5 — ITD13PPCT1IPSI5
13.3" Full IP65/IP66 Panel PC with PCAP Touch, i5 — ITD13PPCT5IPSI5
13.3" Full IP65/IP66 Panel PC with Tempered Glass, i5 — ITD13PPCG1IPSI5
13.3" Full IP65/IP66 Panel PC with Resistive Touch, i7 — ITD13PPCT1IPSI7
13.3" Full IP65/IP66 Panel PC with PCAP Touch, i7 — ITD13PPCT5IPSI7
13.3" Full IP65/IP66 Panel PC with Tempered Glass, i7 — ITD13PPCG1IPSI7

TECHNICAL SPECIFICATIONS

• Series / Model: ITD13
• Enclosure: Stainless steel (option: aluminum alloy)
• IP Rating: IP65 / IP66 (IP67 optional)
• Display: 13.3" FHD 1920×1080, 400 nits, 16.2M colors
• Backlight lifetime: 50,000 hours (LED)
• Touch: Resistive / PCAP / Infrared (drivers for Windows, Linux, Android, Mac, Raspberry Pi)
• CPU Options: ARM RK3288 (RK3399/RK3568/RK3588 optional); Intel Celeron J1900/J4125/J6412; Intel Core i3/i5/i7 (4th–12th Gen optional)
• Memory: Default 2GB (ARM); dual-channel DDR3 / DDR4 options for Intel platforms
• Storage: eMMC default 16GB (ARM) up to 128GB; mSATA/SATA/M.2 options for x86 (default 64GB SSD for some configs)
• Video: 1×HDMI (ARM); 1×VGA + 1×HDMI (x86/Intel)
• USB: 2×USB default (expandable up to 4–6 depending on platform)
• COM: 2×COM (expandable up to 6)
• LAN: 1×LAN (Dual LAN optional)
• Audio: Line-out / MIC In (Realtek ALC662 on x86)
• Expansion & connectivity: GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth optional
• OS Support: Android (ARM), Windows 7/10/11, Linux (depending on CPU)
• Power: DC 12V input, consumption 18W–35W
• Operating temperature: -10 °C to 60 °C (optionally -20 °C to 70 °C)
• Humidity: 10–90% RH
• Mounting: VESA 75/100mm supported
