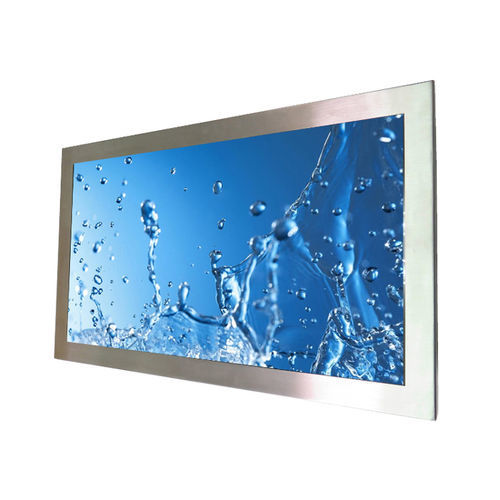

Ship panel PC ITD43PPCG1IP**

marinebuilt-intouch screen

BENEFITS

• Industrial-grade sealed panel PC designed for harsh environments
• High-performance processor, graphics and memory options for HMI/SCADA
• Full-system environmental protection with IP65/IP66-rated enclosure and sealed I/O
• Steel, stainless steel or aluminum alloy housings with VESA mounting
• Multiple touchscreen options (IR, PCAP) and broad OS support
• Flexible I/O and expansion: COM, GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth
• Long product life cycle for project continuity

OVERVIEW
ITD full IP65/IP66 touchscreen panel PCs provide fully sealed industrial computing for PLC, HMI and SCADA applications. Constructed with stainless steel or rugged aluminum alloy enclosures and fully sealed I/O ports, these systems deliver reliable operation in process and discrete manufacturing, industrial automation, oil & gas, chemicals and other demanding environments. Available with industrial-grade displays, touchscreen interfaces, fanless low-power designs and multiple CPU platforms to match application requirements.

Product Family / Title
Full IP65/IP66 Touchscreen Panel PC

Model Name (example shown on page)
ITD 43PPCG1IP**

IP Rating
IP65 / IP66 (IP67 optional)

PC Systems Options

• ARM: Quad-Core Cortex-A17 1.8GHz (RK3288; RK3399/RK3568/RK3588 optional)
• x86: Intel Celeron J1900/J4125/J6412; Intel Core i3/i5/i7 (4th–12th Gen optional)
• Memory: Default 2GB; options 4GB/8GB; DDR3/DDR4 SODIMM options
• Storage: eMMC (ARM) default 16GB; X86: msata/SATA/M.2 default 64GB SSD; up to 128GB (ARM) or larger SSDs
• Video / I/O: HDMI (ARM); VGA + HDMI on Intel platforms; USB 2–6 ports, TF slot, COM ports optional
• Network & Options: 1×LAN (dual LAN optional), PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO
• OS: Android 7.1/10/11/12+ (ARM); Windows 7/10/11, Linux (Intel)

Default IP65 Connectors
2× USB 2.0, 1× LAN, AC 110–240V (default connector set shown)

LCD Panel

• Screen diagonal: 43"
• Active area: 941.184 × 529.416 mm
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 400 cd/m²
• Contrast ratio: 1400:1
• Colors: 16.7M
• Viewing angles: 89/89/89/89
• Backlight: LED, ~50,000 hours

Touch Panel

• Touch options: IR, PCAP
• Drivers: Windows, Linux, Android, Mac, Raspberry Pi

Operation

• Operating temperature: 0–50 °C
• Humidity: 10–90% RH
• Designed for 24/7/365 operation

Power

• Power input: AC 110–240V
• Power consumption: ~150W
• Power indicator: Green LED

Order Information (example SKUs)

• 43" Full IP65/IP66 Panel PC with IR Touch, J1900 — ITD43PPCT1IPJ1
• 43" Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD43PPCT5IPJ1
• 43" Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD43PPCG1IPJ1
• 43" Full IP65/IP66 Panel PC with IR Touch, i3 — ITD43PPCT1IPI3
• 43" Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD43PPCT5IPI3
• 43" Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD43PPCG1IPI3

Technical Specifications

• Model: ITD 43PPCG1IP**
• IP rating: IP65 / IP66 (IP67 optional)
• Screen size: 43" (941.184 × 529.416 mm active)
• Resolution: 1920 × 1080
• Brightness: 400 cd/m²
• Contrast ratio: 1400:1
• Colors: 16.7M
• Backlight life: ~50,000 hours (LED)
• Touch: IR, PCAP (drivers for Windows, Linux, Android, Mac, Raspberry Pi)
• CPU options: ARM Quad-Core Cortex-A17 1.8GHz (RK3288), Intel Celeron J1900/J4125/J6412, Intel Core i3/i5/i7 (4th–12th Gen optional)
• Memory: Default 2GB; options 4GB/8GB; DDR3/DDR4
• Storage: eMMC/msata/SATA/M.2 (platform dependent)
• Video I/O: HDMI; VGA on Intel platforms
• USB: 2× default, up to 6 ports
• LAN: 1× (dual LAN optional)
• Expansion: COM, GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth
• Operating temp: 0–50 °C
• Humidity: 10–90% RH
• Power input: AC 110–240V
• Power consumption: ~150W
• Mounting: VESA 75/100 mm
